VPD-170-IRT
IR Temperature data concentrator
Features
- High-resolution color touch screen
- Front Panel: IP65 Waterproof
- Provide setting Temperature threshold value function
- 9 Signal Relay Output channels for Alarm
- Provide Thermography
- Can connect to multiple iSN-81x
- Support Modbus TCP/RTU protocol
Introduction

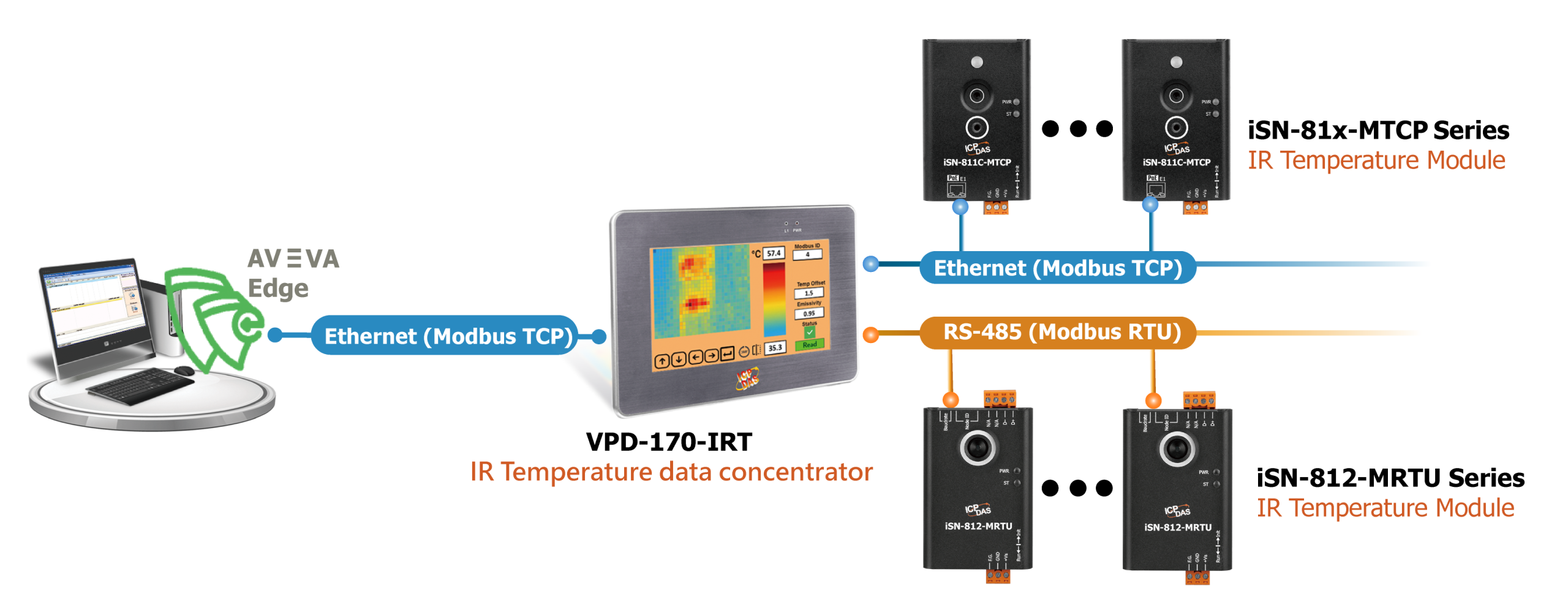

The VPD-170-IRT is a data concentrator with user interface designed for iSN-81x infrared temperature sensing modules. The VPD-170-IRT supports up to 8 Modbus TCP Client connections, allowing remote monitoring hosts to connect to the concentrator via Ethernet, and accessing the temperature data of multiple iSN-81x series modules at once. From the VPD-170-IRT's touch screen, users can configure the functions of the iSN-81x series modules and the concentrator itself, as well as instantly see the temperature and thermal image of the measured object. Through the VPD-170-IRT temperature data concentrator and Ethernet convenient connection and communication ability, users can quickly set up remote monitoring system and centralized management of temperature data.
Applications
As the functions of machines and wiring in the control panel increase, the number of parts to be inspected also increases, but the risk of accidents increases due to inaccurate inspections. In order to ensure the safety of the disk and cabinet and the management of the operating environment of the machine room, IoT devices are introduced to establish a zero delay and zero disconnection monitoring platform.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products

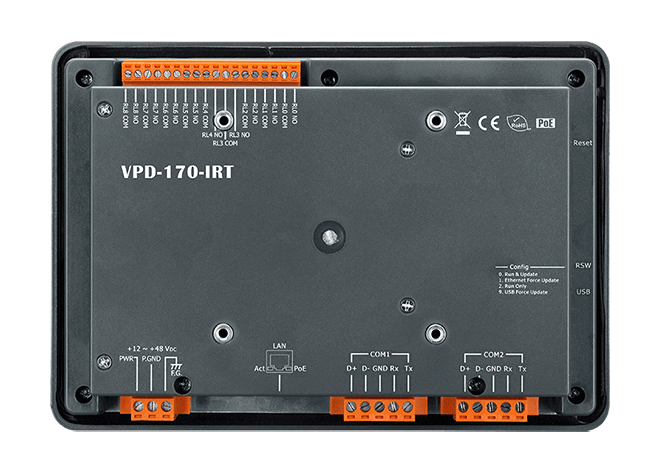

| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 64 MB SDRAM/64 MB Flash |
| Real Time Clock | Yes |
| Display | |
|---|---|
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
|---|---|
| Status | 2 LED |
| Relay Output | |
|---|---|
| Channels | 9 |
| Type | Signal Relay (Form A) |
| Contact Material | Silver Nickel, Gold-covered |
| Contact Rating | 2 A @ 30 VDC<br>0.24 A @ 220 VDC<br>0.25 A @ 250 VAC |
| Operate Time | 3 ms (typical) |
| Release Time | 4 ms (typical) |
| Electrical Endurance | 2 x 10^5 ops. |
| Mechanical Endurance | 10^8 ops. |
| Power on Value | Yes |
| Safe Value | Yes |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes |
| Rubber Keypad | No |
| Reset Button | Yes |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 1, 10/100 Base-TX |
| Protocol | Modbus TCP |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| Protocol | Modbus RTU |
| USB | |
|---|---|
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
|---|---|
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: NEMA 4 /IP65 |
| Environment | |
|---|---|
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
