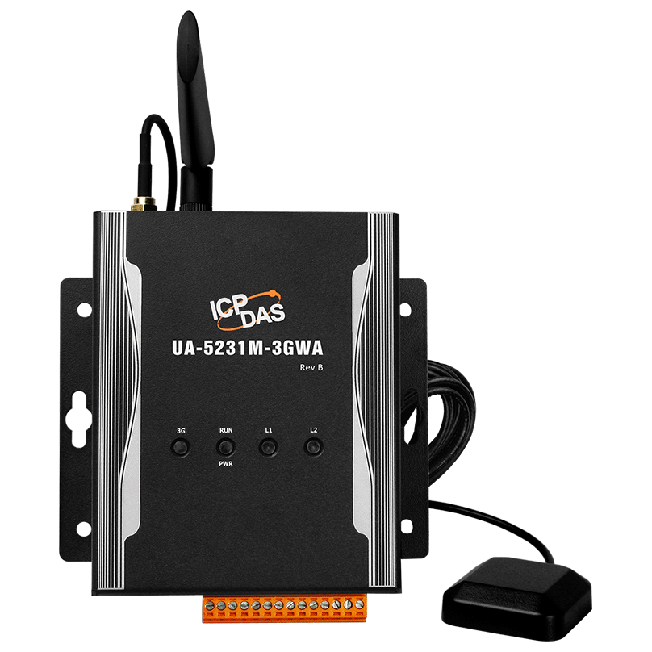

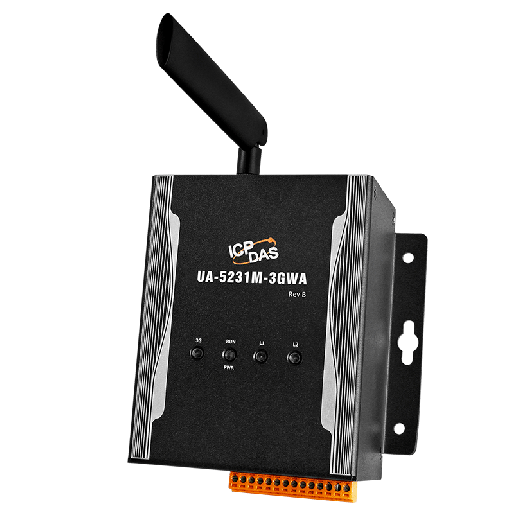

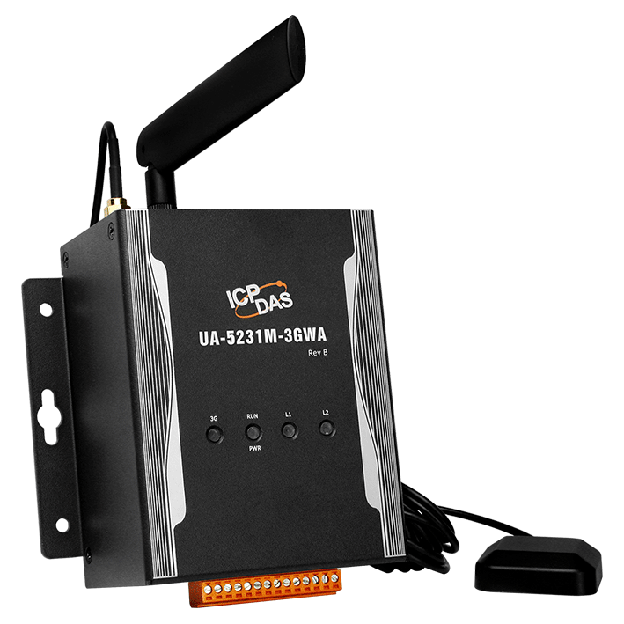

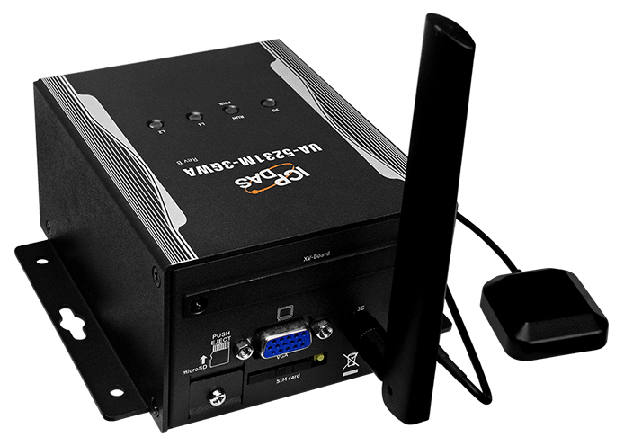

UA-5231M-3GWA
Introduction
UA-5200 Series is a series of IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/ RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services (Support to execute OPC UA and MQTT communication at the same time). Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database, and save to the local file as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive first-hand notification messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.
Applications
Click to view the Applications of IIoT Cloud Solution.
UA series supports one optional XV-board module for I/O or RS-485 expansion, please refer to the "Supported List" web page.
UA series supports one optional XV-board module for I/O or RS-485 expansion, please refer to the "Supported List" web page.
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
Data Logger | |
---|---|
Local Data Logger | Record I/O data, and save to the local MicroSD card in CSV format. |
Remote Database | Record I/O data, and send to the remote database of MS Recommend Max. 1 Database per Time, and Max. 1000 Tags. |
Software | |
---|---|
OS | Linux Kernel 3.2.14 |
Protocol | · OPC UA Server · MQTT Broker/lient · Modbus TCP Master · Modbus RTU/ASCII Master · EtherNet/IP Scanner |
Function | · PID Function · Internal Module |
IoT Service Integration | · Microsoft Azure · Amazon Web Services · IBM Bluemix · IFTTT |
Main Unit | |
---|---|
CPU | ARM CPU, 1.0 GHz |
System Memory | DDR3 SDRAM 512 MB |
Storage | Flash eMMC 8 GB microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card) |
Non-Volatile Memory | FRAM 64 KB |
Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
Display | |
---|---|
Signal | VGA (Analog RGB), reserved |
LED Indicators | |
---|---|
Status | 1 x PWR/RUN 2 x User Defined LEDs 1 x 3G |
3G System | |
---|---|
Data Transmission Rate | WCDMA / HSPA+; Download: Max. 14.4Mbps; Upload: Max 5.76Mbps |
Frequency Band | WCDMA 850/900/1900/2100 MHz |
I/O Expansion | |
---|---|
I/O Type | 1 Expansion Port. Support 1 optional XV-board to expand I/O or RS-485 ports (*1) |
HMI | |
---|---|
Rotary Switch | 1 x 10 Position (0 ~ 9) |
Ethernet | |
---|---|
Ports | 1 x RJ-45, 10/100/1000 Base-TX |
COM Ports | |
---|---|
Ports | 1 x RS-232 (console) 1 x RS-232 2 x RS-485 (2500VDC Isolated) |
USB | |
---|---|
Connector | 1 x 2.0 host |
Power | |
---|---|
Input Range | +12 ~ +48 VDC |
Consumption | 6.5 W |
Mechanical | |
---|---|
Casing | Metal |
Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
Installation | DIN-Rail |
Environment | |
---|---|
Operating Temperature | -25 ~ +75°C |
Storage Temperature | -40 ~ +80°C |
Humidity | 10 ~ 90% RH, non-condensing |
Specification Memo
*1. UA series supports one optional XV-board module for I/O or RS-485 expansion, please refer to the "Supported List" web page.
