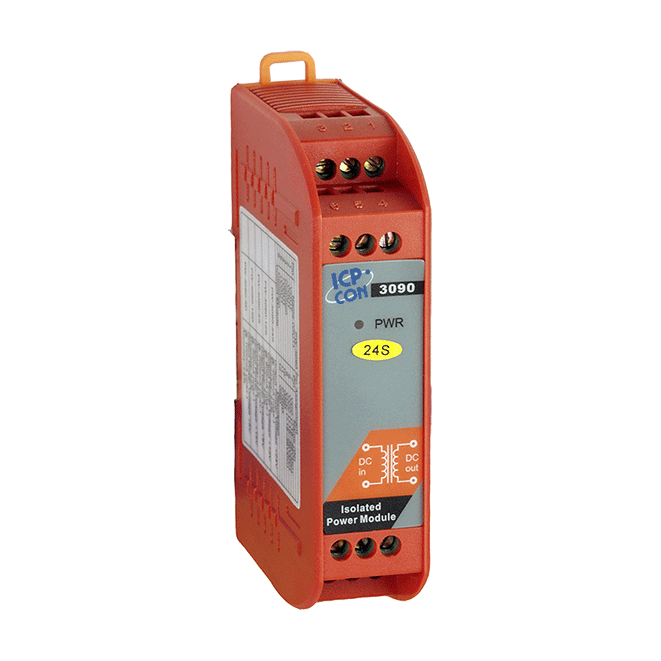

PW-3090-24S-R

Power Conditioner, output voltage +24 VDC @ 400 mA (max.)

Features

• 1000 VDC isolation
• Flexible DIN-rail mounting

Introduction

The PW-3090 series is an efficient (83%) DC-to-DC power module with 1000 VDC isolated protection. It has non-regular DC input (18 ~ 36 V) and stable DC output (5 V, 12 V, 24 V, 5 V, 15 V). Using it, your devices can work with stable power source and against harmful effects in the operating environment. Using it, your devices can work with stable power source and against harmful effects in the operating environment.

Applications

Power isolation (DC-to-DC converter)

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PW-3090-24S-R CR	DESCRIPTIONPower Conditioner, output voltage +24 VDC @ 400 mA (max.) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Input
Voltage Range	18 ~ 36 VDC (non-regulated)
Polar	Unipolar

Output
Ripple & Noise (Max.)	100 mVp-p max.
Linearity	±0.5% max.
DC Voltage	+24 VDC @ 400 mA (max.) Accuracy: ±2%
Isolation	1000 VDC
Efficiency	83% max.
Short Circuit Protection	Yes

Mechanical
Dimensions (mm)	25 mm x 114 mm x 70 mm (W x L x H)

Environment
Operating Temperature	-25 ~ 70 °C
Storage Temperature	-30 ~ 85 °C
Humidity	5 ~ 95%, non-condensing
