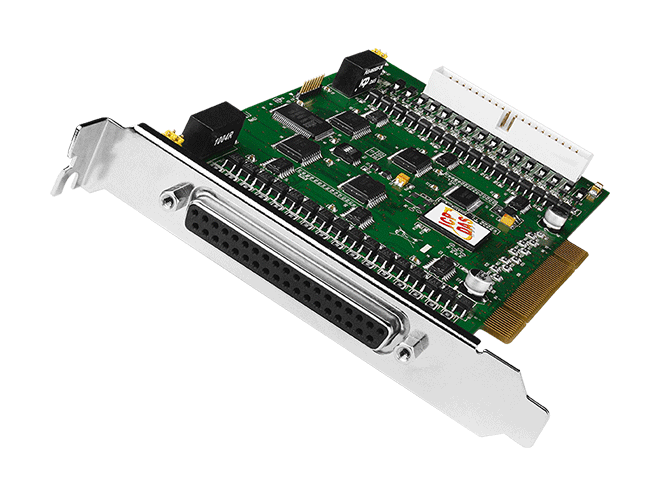

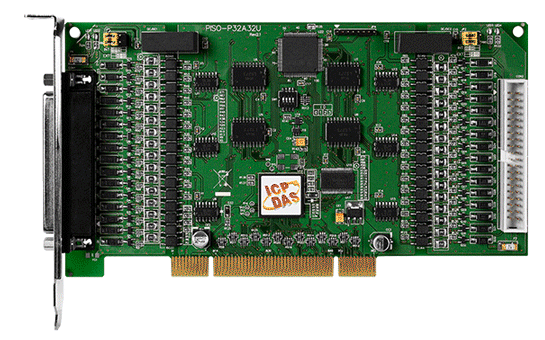

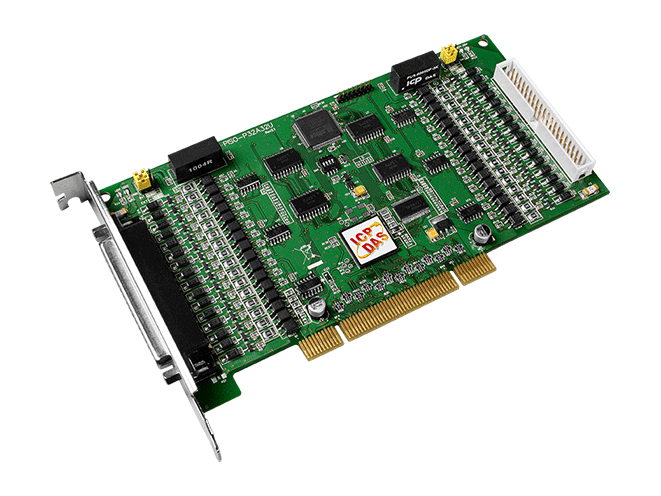

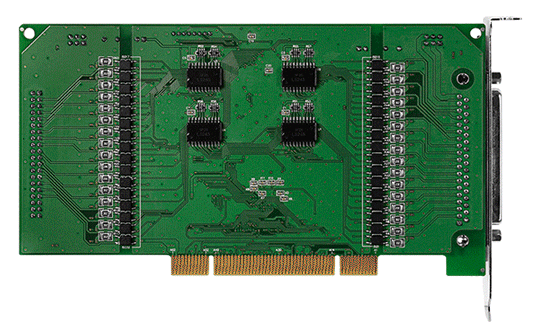

PISO-P32A32U

Universal PCI, 32-ch Optical Isolated DI and 32-ch Open Collector Isolated (Source, PNP) DO Board

Features

Universal PCI (3.3 V/5 V) Interface
32 Optically-isolated Digital Input Channels
32 Optically-isolated Digital Output Channels (Source, PNP)
- Supports DO Status Readback (Register Level)
3750 Vrms Photo-isolation Protection
Built-in DC/DC Converter with 3000 VDC Isolation
Supports Card ID (SMD Switch)

Introduction

The PISO-P32A32U universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 32 optically-isolated DI channels and 32 optically-isolated DO channels, arranged into four isolated banks. Each DO channel includes a PNP transistor and an integral suppression diode for the inductive load. Isolated input channels 0-15 are allocated to Group A, while channels 16-31 are allocated to Group B. Isolated output channels are allocated to Groups C and D. The photocoupler input for the PISO-P32A32U can be powered by either an internal current source or an external power supply, while the input for the PISO-P32A32U operates using an external power supply only.

Each Digital Output channel includes a PNP transistor and an integral suppression diode for the inductive load. Isolated input channels 0 - 15 are allocated to Group A, while channels 16 - 31 are allocated to Group B. Isolated output channels are allocated to Groups C and D. The photocoupler input for the PISO-P32A32-5V can be powered by using either an internal current source or an external power supply, while the input for the PISO-P32A32U operates using an external power supply only.

The PISO-P32A32U also include an onboard Card ID switch that enables the board to be recognized via software if two or more boards in the same computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Accessories

Applications

Factory automation
Product test
Laboratory automation

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PISO-P32A32U CR	DESCRIPTIONUniversal PCI, 32-ch Optical Isolated DI and 32-ch Open Collector Isolated (Source, PNP) DO Board (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Connector	Female DB37 x 1 40-pin box header x 1
Card ID	Yes (4-bit) for Version 4.0 or above

Digital Input
Channels	32
Type	Dry + Wet Contact Photocoupler
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	Dry: Close to GND Wet: 9 ~ 24 V (Min. 7 V; Max. 30 V)
OFF Voltage Level	Dry: Open Wet: 0 ~ 1 V
Response Speed	4 kHz (Typical)
Trigger Mode	Static Update
Isolation	3750 Vrms (Using external power)

Digital Output
Channels	32
Type	Open Emitter
Sink/Source (NPN/PNP)	Source (PNP)
Operation Mode	Static Update
Load Current	100 mA/+30 V for each channel @ 100% duty
Response Speed	4 kHz (Typical)
Isolation	3750 Vrms
