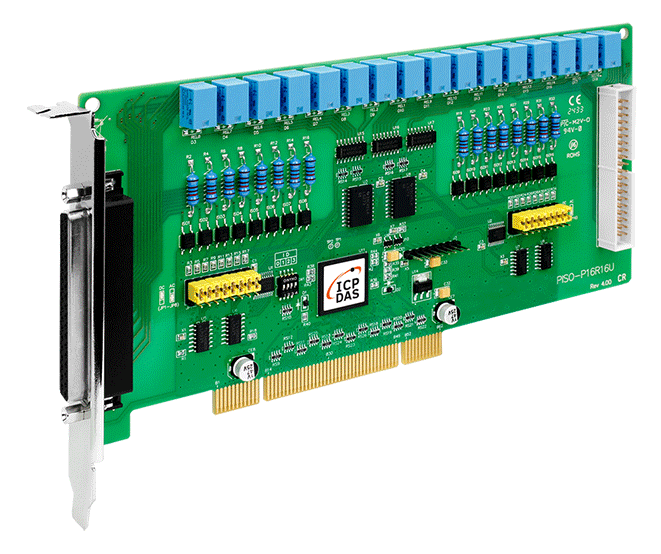

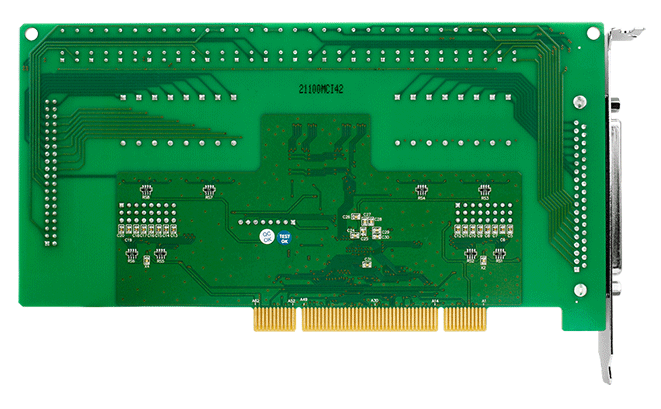

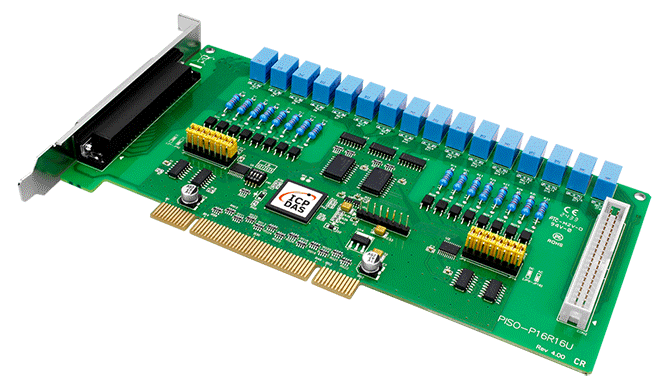

PISO-P16R16U

Universal PCI, 16-ch Isolated DI, 16-ch Relay Output Board

Features

Universal PCI (3.3 V/5 V) Interface
Supports Card ID (SMD Switch)
16-channel Relay Output
16-channel Optically-isolated Digital Input
- 3750 Vrms Photo-isolation Protection
- Selectable DC Signal Input Filter
- AC Signal Input with Filter

Introduction

The PISO-P16R16U is a Universal PCI card supporting both the 3.3 V and 5 V PCI bus, and contains 16 photocoupler Digital Input channels that provide 3750 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes. The cards are also equipped with 16 Relay Output channels to enable the control of the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.

The PISO-P16R16U card is fully compatible with the PISO-P16R16 card, and is designed as a direct replacement without requiring any modification to the software or the driver.

Comparsion

Model Name	PCI-P16R16U	PISO-P16R16U	PEX-P16R16i	PEX-P8R8i
Bus	Universal PCI	Universal PCI	PCI Express x1
Relays	Form C x 8 Form A x 8			Form C x 4 Form A x 4
DI	16-ch with 5000 Vrms Isolation	16-ch with 3750 Vrms Isolation		8-ch with 3750 Vrms Isolation
Card ID	-	Yes (4-bit)
Data bus	16-bit	8-bit
Driver	UniDAQ SDK/Driver, or PCI-P16R16 SDK/Driver	UniDAQ SDK/Driver, or PISO-DIO SDK/Driver
Remarks	-	Suggested for new users.

Accessories

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PISO-P16R16U CR	DESCRIPTIONUniversal PCI, 16-ch Isolated DI, 16-ch Relay Output Board (RoHS) Includes one CA-4037W cable and two CA-4002 D-Sub connectors

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Connector	Female DB37 x 1 40-pin box header x 1

Digital Input
Channels	16
Type	Wet Contact Photocoupler
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
OFF Voltage Level	AC/DC 0 ~ 1 V
Response Speed	Without Filter: 50 kHz (Typical) With Filter: 0.455 kHz(Typical)
Trigger Mode	Static Update
Isolation	3750 Vrms

Relay Output
Channels	16
Type	8 SPDT, 8 SPST
Contact Rating	AC:120 V @ 0.5 A DC: 24 V @ 1 A
Operate Time	1 ms (Typical)
Release Time	7 ms (Typical)
Electrical Endurance	100,000 ops.
Mechanical Endurance	5,000,000 ops.
