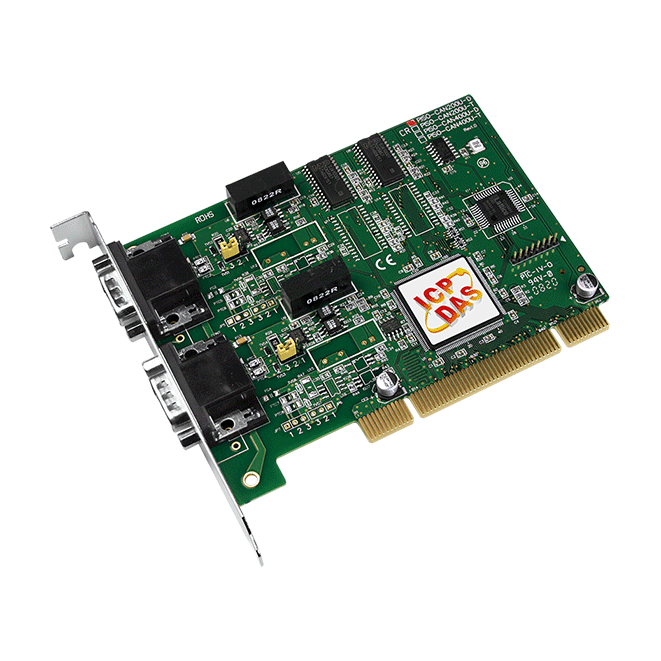

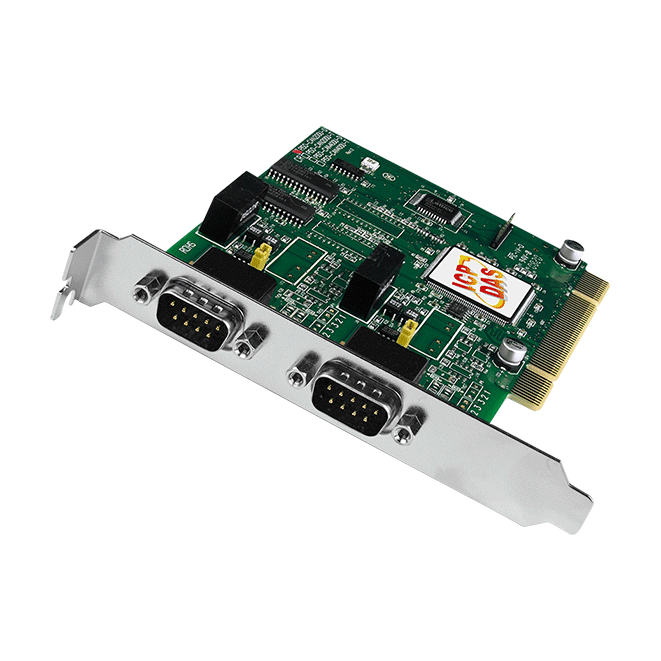

PISO-CAN200U-D
2-Port CAN Universal PCI Card (9-pin D-Sub Connector)
Features
- Two independent CAN bus 2.0A/2.0B communication ports
- Compatible with CAN specification 2.0 parts A and B
- On-board optical isolation protection
- Programmable transfer rate up to 1 Mbps
- 2500 Vrms photo couple isolation on the CAN bus
- Jumper select 120Ω terminal resistor for each port
- Direct memory mapping to the CAN controllers
- 33MHz 32bit 5V PCI bus (V2.1) plug and play
- Universal PCI card, supports both 5V and 3.3V PCI bus
- We have verified to drive 100 CAN nodes at the same time
Introduction
The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, PISO-CAN200U-D can represents an economic solution of an active CAN board. It has two or four independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications. Besides, PISO-CAN200U-D uses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
| PRODUCT SERIES PISO-CAN200U-D CR | DESCRIPTION2-port Isolated Protection CAN Universal PCI Card with 9-pin D-sub connector (RoHS) |
|
Similar Products
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net |
| PC Bus | |
|---|---|
| Type | Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play |
| CAN | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 2 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-coupler |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
|---|---|
| Consumption | 250 mA @ 5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 126 x 85 x 22 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
