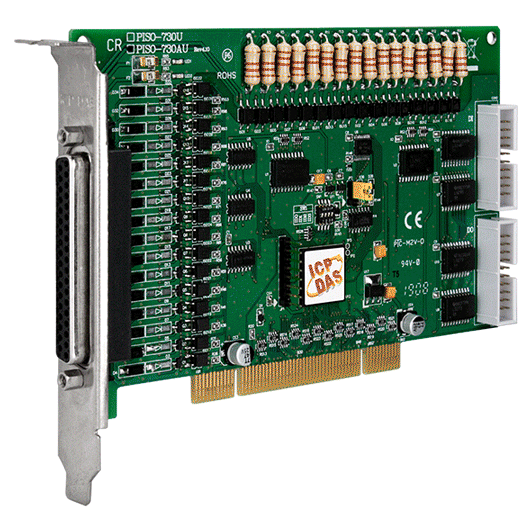

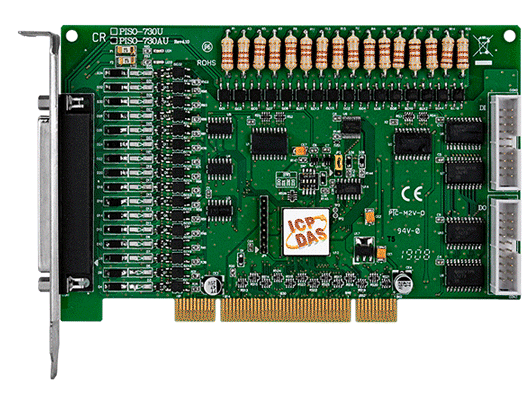

PISO-730AU

Universal PCI, 32-ch Isolated Digital I/O and 32-ch TTL Digital I/O Board (Source, PNP)

Features

PCI (5 V) Interface
16-channel Optically-isolated Digital Input
16-channel Optically-isolated Digital Output (Source, NPN)
16-channel 5 V/TTL Digital Output
16-channel 5 V/TTL Digital Input
3750 Vrms Photo-isolation Protection
2 Interrupt Sources

Introduction

The PISO-730AU cards provide 32 isolated Digital I/O channels (16 x DI and 16 x DO) and 32 TTL-level Digital I/O channels (16 x DI and 16 x DO). Both the isolated Digital Input and the Digital Output channels use a short optical transmission path to transfer an electronic signal between the elements of a circuit and keep them electrically isolated. With 3750 Vrms isolation protection, the DI/O channels allow the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes.

Each Digital Output includes a PNP transistor and an integral suppression diode for the inductive load. The open-collector Digital Output channels are typically used for alarm and warning notifications, signal output control, control for external circuits that require a higher voltage level, or signal transmission applications, etc.

Accessories

Applications

Factory automation
Product test
Laboratory automation

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PISO-730AU CR	DESCRIPTIONUniversal PCI, 32-ch Isolated Digital I/O and 32-ch TTL Digital I/O Board (Source, PNP) (RoHS) Includes one CA-4002 D-Sub connector

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Connector	Female DB37 x 1 20-pin box header x 2
Card ID	Yes (4-bit)

Digital Input
Channels	16 (Isolated) + 16 (Non-isolated)
Type	Wet Contact Isolated: Photocoupler Non-isolated: 5V/TTL
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	Wet: 9 ~ 24 V (Min. 7 V; Max. 30 V) TTL: 2.0 V Min.
OFF Voltage Level	Wet: 0 ~ 1 V TTL: 0.8 V Max.
Response Speed	4 kHz (Typical) (Isolated) 1.0 MHz (Typical) (Non-isolate)
Trigger Mode	Static Update
Isolation	3750 Vrms (Isolated)

Digital Output
Channels	16 (Isolated) + 16 (Non-isolated )
Type	Isolated: Open Emitter Non-isolated: 5V/TTL
Sink/Source (NPN/PNP)	Source (PNP)
Operation Mode	Static Update
Load Voltage	Non-isolated: Logic 0: 0.4 V max. Logic 1: 2.4 V min.
Load Current	100 mA/+30 V for each channel @ 100% duty (Isolated) Sink: 2.4 mA @ 0.8 V (Non-isolated) Source: 0.8 mA @ 2.0 V (Non-isolated)
Response Speed	4 kHz (Typical) (Isolated) 1.2 MHz (Typical) (Non-isolate)
Isolation	3750 Vrms (Isolated)
