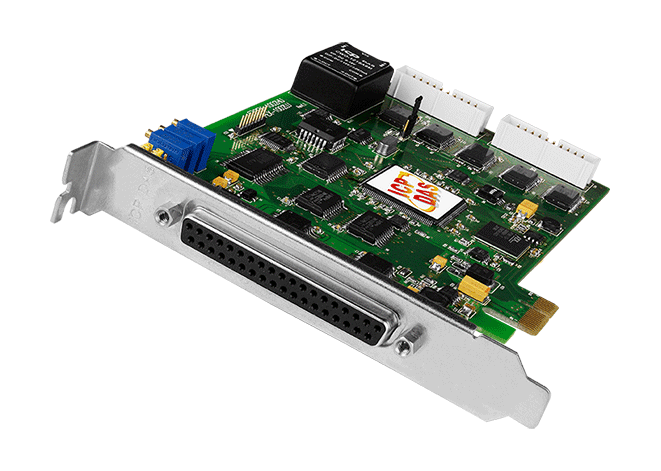

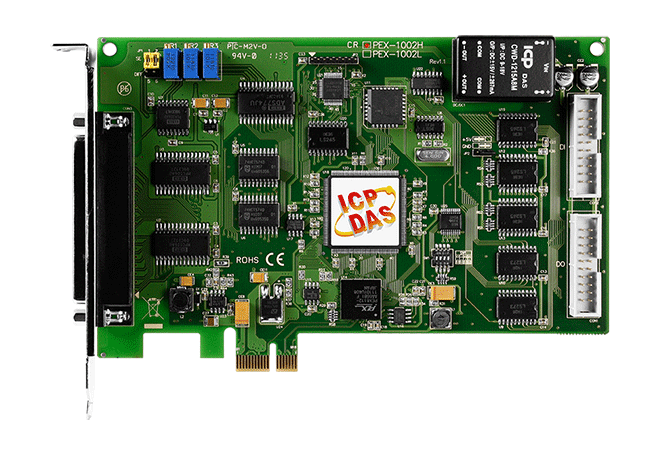

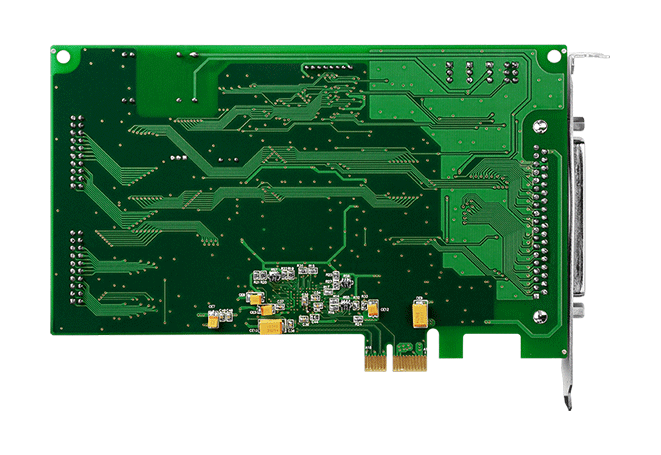

PEX-1002H

PCI Express, 44 kS/s, 32-ch, 12-bit Multi-function Board

Features

PCI Express x1 Interface
Supports Card ID (SMD Switch)
16-channel 5 V/TTL Digital Input
16-channel 5 V/TTL Digital Output
Pull-high/Pull-low Jumpers for DI Channels
12-bit, 32 Single-ended/16 Differential Analog Input channels
Internal/External Trigger
110 or 44 kS/s AD Sampling Rate

Introduction

The PEX-1002H supports PCI Express bus. These cards are a family of A/D board and features low-gain 110 kS/s AI. It provides 12-bit 32 single-ended or 16 differential AIs, 16 DI and 16 DO channels.

The PEX-1002H also adds a Card ID switch on-board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002L cards in one computer. The PEX-1002H provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Accessories

Applications

Laboratory automation
Production test
Sensor interface

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PEX-1002H CR	DESCRIPTIONPCI Express, 44 kS/s, 32-ch, 12-bit Multi-function Board (RoHS) Includes one CA-4002 D-Sub connector

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Connector	Female DB37 x 1 20-pin box header x 2
Card ID	Yes (4-bit)

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 1, 10, 100, 1000 Bipolar Range: ±10 V, ±1 V, ±0.1 V, ±0.01 V
Resolution	12-bit
Accuracy	0.01% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	44 kS/s. Max.
Input Impedance	10 MΩ/6 pF
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling, Interrupt

Digital Input
Channels	16
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	500 KHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Load Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Load Current	Sink: 2.4 mA Source: 0.8 mA
Response Speed	500 KHz (Typical)
