PCI-AD64SU
Universal PCI, 1 MS/s, 64-ch, 16-bit AI Board (4 K WORD FIFO)
Features
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 64 Single-ended/32 Diff erential Analog Input Channels
- 16-bit ADC with Max. 1 MS/s Sampling Rate
- 4096-sample Hardware FIFO for Analog Input
- AD Trigger Mode: Software, Pacer
- AD Data Transfer: Polling, Interrupt
Introduction
PCI-AD64SU is a high-resolution high channel count analog input card for the Universal PCI bus. Its sampling rate is up to 1 MS/s and 16-bit resolution provides the power needed for most data acquisition applications. PCI-AD64SU provides 64 single-ended, 32 differential analog input channels. It also has built in a 4k-sample FIFO buffer for analog input data.
The PCI-AD64SU also includes an onboard Card ID that enables the board to be recognized via software if two or more PCI-AD64SU cards are installed in the same computer.
The PCI-AD64SU also includes an onboard Card ID that enables the board to be recognized via software if two or more PCI-AD64SU cards are installed in the same computer.

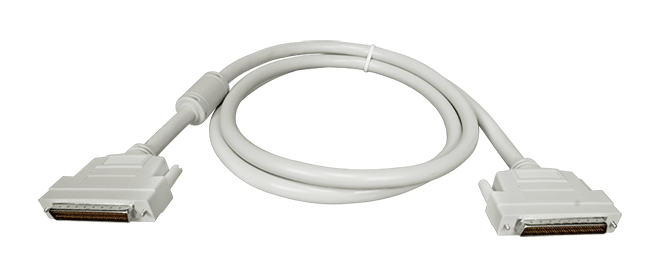

Accessories
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Hardware | |
|---|---|
| Connector | Female SCSI II 68-pin x 1 |
| Card ID | Yes (4-bit) |
| Analog Input | |
|---|---|
| Channels | 64 Single-ended/32 Diff erential |
| Range | Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V |
| Accuracy | 0.1% of FSR ±1 LSB @ 25°C, ±10 V |
| Sampling Rate | Fixed channel: 1 MS/s (Max.) Scan channel: 250 kS/s (Max.) |
| Overvoltage Protection | Continuous ±35 Vp-p |
| FIFO Size | 4096 Samples |
| PC Bus | |
|---|---|
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Power | |
|---|---|
| Consumption | 1 A @ +5 V (Max.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 146 X 120.5 X 21.6 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
