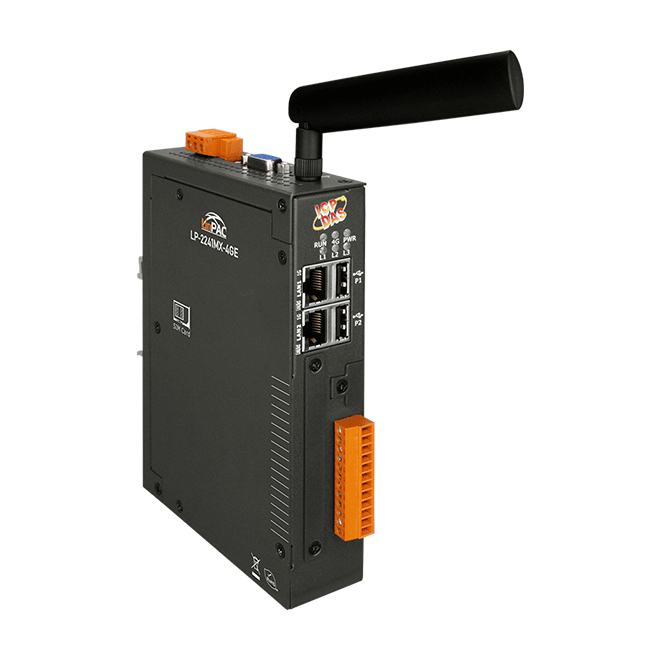

4G Linux Based PAC with Cortex-A8 CPU and 2 LAN Ports (Except China)
Features
• Cortex-A8 (1.0 GHz) CPU
• 512 MB RAM and 512 MB Flash
• Linux kernel 3.2.14 Inside
• Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus (XV-Board)
• 10/100/1000M Dual Ethernet Port
• 4 Serial Ports (RS-232/485)
• Industrial Tri-band 4G module
• 4G Modem
• 512 MB RAM and 512 MB Flash
• Linux kernel 3.2.14 Inside
• Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus (XV-Board)
• 10/100/1000M Dual Ethernet Port
• 4 Serial Ports (RS-232/485)
• Industrial Tri-band 4G module
• 4G Modem
Introduction
The LP-2241MX-4GE is equipped a Cortex-A8 CPU (1 GHz) and using Linux operating system (Linux Kernel 3.2.14). Linux Kernel 3.2.14 is a compact and real-time OS used to quickly create time critical and high performance applications. Main advantage of the LP-2241MX-4GE is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server).
The 4G module work on frequencies of WCDMA 2100/900/850 MHz, FDD LTE: B1/B3/B5/B7/B8/B20 and GSM 850/900/1800/1900 MHz. These modules utilize the 3G/4G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS/3G/4G connection applications with our PAC.
The 4G module work on frequencies of WCDMA 2100/900/850 MHz, FDD LTE: B1/B3/B5/B7/B8/B20 and GSM 850/900/1800/1900 MHz. These modules utilize the 3G/4G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS/3G/4G connection applications with our PAC.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
|---|---|
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
|---|---|
| Status | 1 x 4G 1 x Power 1 x Run 3 x Programmable |
| 3G System | |
|---|---|
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps, Upload: Max 5.76 Mbps; TD-SCDMA Download: Max. 4.2 Mbps, Upload: Max 2.2 Mbps; CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
|---|---|
| Data Transmission Rate | Download Max 100 Mbps/Upload Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 |
| GPS/GNSS | |
|---|---|
| Channels | 32 |
| Protocol | NMEA 0183 |
| GSM | |
|---|---|
| Data Transmission Rate | Downlink transfer: Max. 85.6 kbps, Uplink transfer: Max 42.8 kbps |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10, GPRS station class B |
| I/O Expansion | |
|---|---|
| I/O Type | XV-board |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 2 x RS-485 (2500 VDC, Isolated) |
| USB | |
|---|---|
| Ports | 2 |
| Specification | USB 2.0 (Host) |
| Power | |
|---|---|
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |

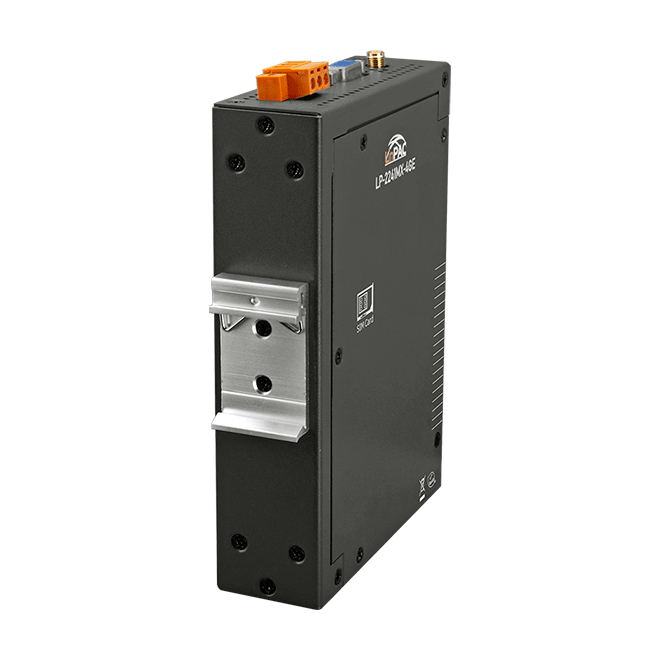

| Installation | DIN-Rail or Wall Mounting (optional) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
