3-channel Digital Input with Open/Short Circuit Detection and 1-channel Relay Output Module
Features
- Power Relay Output
- Dry Contact Digital Input
- Digital Input With Open/Short Circuit Detection
- ±4 kV ESD Protection
- Tiny Form Factor with Easy Screw Mounting
Introduction
The LC-131 is an easy-to-use digital input module, equipped with 3-channel digital input, functions open/short circuit detection, and 1-channel relay output. The digital input type is dry contact, meaning that wiring is easy. There are two methods of controlling the relay outputs, either directly from the digital input or via a remote host. Settings, such as communication protocol and node address can be configured either via hardware or via software, depending on the situation. The module has also passed ±4 kV ESD reliability test, and is designed to operate in harsh environments.

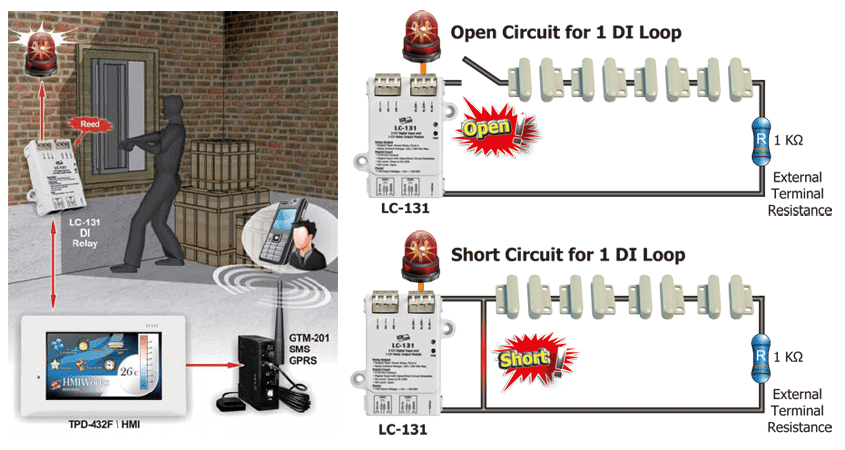

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 LED as Power Indicator |
| Digital Input | |
|---|---|
| Channels | 3 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Short Circuit Detection | Yes, optioned external terminal resistance of 1 K Ohms is required |
| Digital Input/Counter | |
|---|---|
| Max. Counts | 16-bit (65535) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Relay Output | |
|---|---|
| Channels | 1 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 16 A @ 250 VAC or 16 A @ 30 VDC |
| Operate Time | 15 ms Max. |
| Release Time | 5 ms Max. |
| Electrical Endurance | 50,000 OPS |
| Mechanical Endurance | 100,000 ops |
| Power on Value | Yes, programmable |
| Safe Value | Yes, programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | DCON, Modbus RTU |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 0.8 W Max. |
| Powered from Terminal Block | Yes, 10 ~ 30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
| Installation | Screw Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
