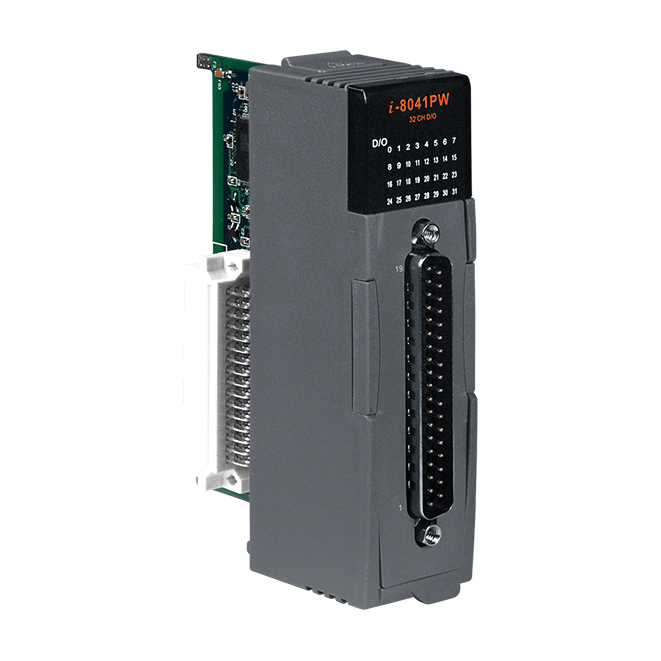

I-8041PW-G
32-ch Isolated DO Module with Self Protection
Features
- 32-channel Open Collector Output
- Sink Type Digital Output
- Short circuit protection
- Overvoltage Protection
- Overload Protection
Introduction

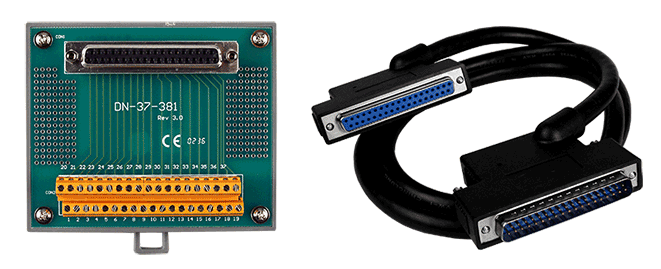

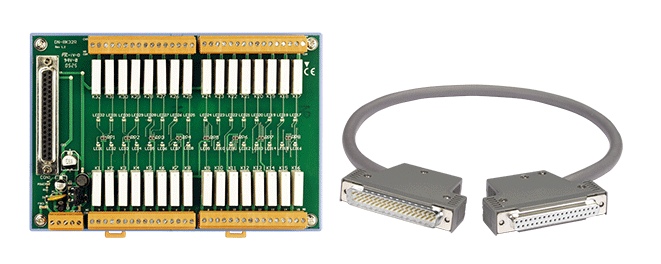

The I-8041PW module offers 32 Digital Output channels, each of which features Photocouple isolation. The I-8041PW supports Sink Type Output using an open collector. The I-8041PW includes 32 LED indicators that can be used to monitor the status of the Digital Output channels. ±4 kV ESD protection and 3750 VDC intra-module isolation is provided as standard. The I-8041PW can be paired with a daughterboard, such as the DN-37-381-A CR for easy wiring, or the DN-8K32R for Relay Output. The I-8041PW integrates over-current, over-voltage and shortcircuit functionality. ICP DAS recommends selecting either the "PW" version of the digital output module for industrial use.
 |
 |
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
| PRODUCT SERIES I-8041PW-G CR | DESCRIPTION32-ch Isolated DO (Sink, NPN, 10~50VDC) Module with Self Protection (RoHS) Includes CA-4002F (DB37 connector Female with plastic cover) |
|

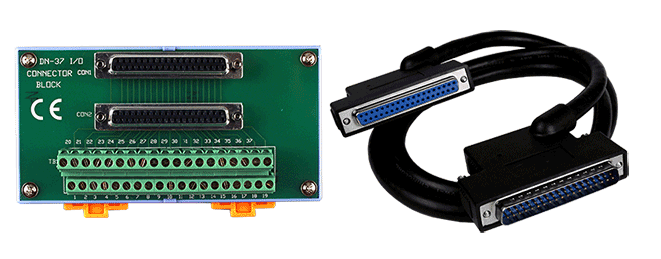

This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 32 x I/O |
| Digital Output | |
|---|---|
| Channels | 32 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 ~ +50 VDC |
| Load Current | 100 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.1 A |
| Short-circuit Protection | Yes |
| Power | |
|---|---|
| Consumption | 1.5 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 85 x 114 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
