I-7565-CPM-G
USB to CANopen Master Converter
Features
- Follow CiA 301 v4.02
- Support EDS File
- Support Node Guarding and Heartbeat protocol
- Support NMT, PDO, SDO, SYNC and EMCY protocol
- Fully compliant with USB 1.1/2.0 (Full Speed)
- Support Auto-Seach slave device functions.
- Support on-line adding and removing devices
- Free software development tools for windows.
- Provide demos and utility
- Support event trigger, such as EMCY event, Guarding event, Heartbeat event, and Slave Boot-up events
- Support VC6, VB6, VB.net, and C# development
Introduction

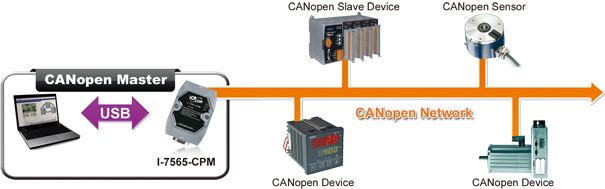

The I-7565-CPM. It's a standard CANopen protocol and build-in a cpu of 80186 80MHz to run I-7565-CPM firmware independently. I-7565-CPM provides a set APIs that will be easy programr to controll device by user. And it will resoult the problem of anxiety and complexity of protocol for user. it can communication between computer and I-7565-CPM's USB interface to remote the device easily and fastily, Due to I-7565-CPM has a interface of usb, so it become a move-station to create the CANopen system effectively. More infomation please to refer to web side.
The CANopen master device also supports CANopen Motion Library, which follows the CiA-402 specification and supports the functions of position control, velocity control, torque control, synchronized control, etc. For more information, please refer to CANopen Motion Library webpage.
Applications
- Industrial Machinery
- Laboratory Equipment & Research
- Restaurant Appliances
- Maritime
- Medical
- Specialty Vehicles...etc.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
Similar Products
| Software | |
|---|---|
| Driver | Windows 98/ME/NT/2K/XP/Vista/Win7/Win10 and Linux |
| SDK | VC++6.0, VB6.0, C#.net, VB.net |
| CPU Module | |
|---|---|
| CPU | 80186, 80MHz. |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
|---|---|
| Status | PWR LED, ACT LED, ERR LED, Tx/Rx LED. |
| USB | |
|---|---|
| Transfer Speed | 921.6 kbps |
| Connector | 1 x USB (Type B) |
| CANopen | |
|---|---|
| Controller | NXP SJA1000T CAN Controller |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02 |
| NMT | Master |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 101 x 33 (W x H x D) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Software Utility Features
The software utility can easily to access the I/O data of all the slave devices. The users can monitor the input data of the specific slave device and change the output data to the remote slave device with this utility.
- Auto-scan all the CANopen master devices that the CPMUtility has supported
- Auto-scan all the CANopen slave devices on the CANopen network
- Support EDS file
- Dynamic PDO object setting easily
- Guarding Event and Heartbeat Event detection
- EMCY message receiving
- Maximum 5 SYNC message producers per CANopen master
- Support PISO-CPM100(U), I-8123W, I-7565-CPM for version 2.00 later
- Support OS: WinCE5.0/6.0, and Win2K/XP/Vista/Win7/Win10 with 32-bit system
- support demo of CAN-2000C series
