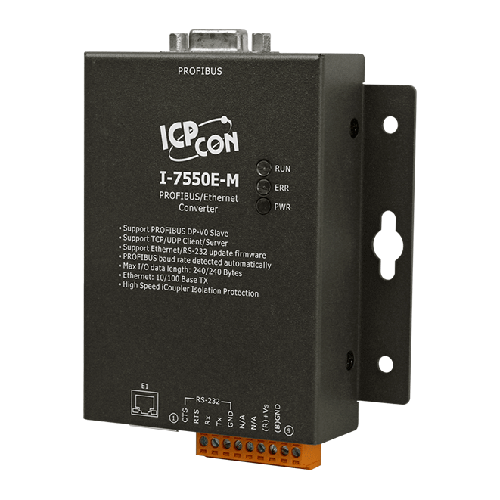

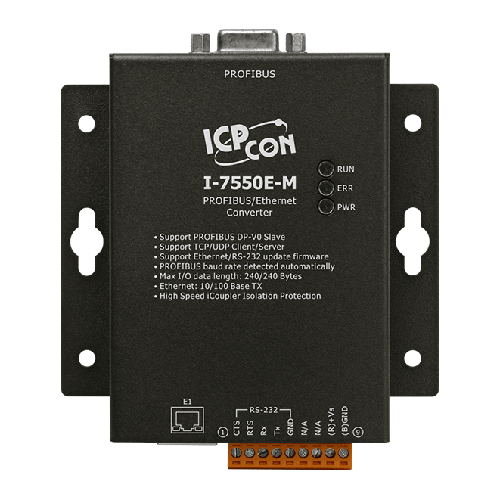

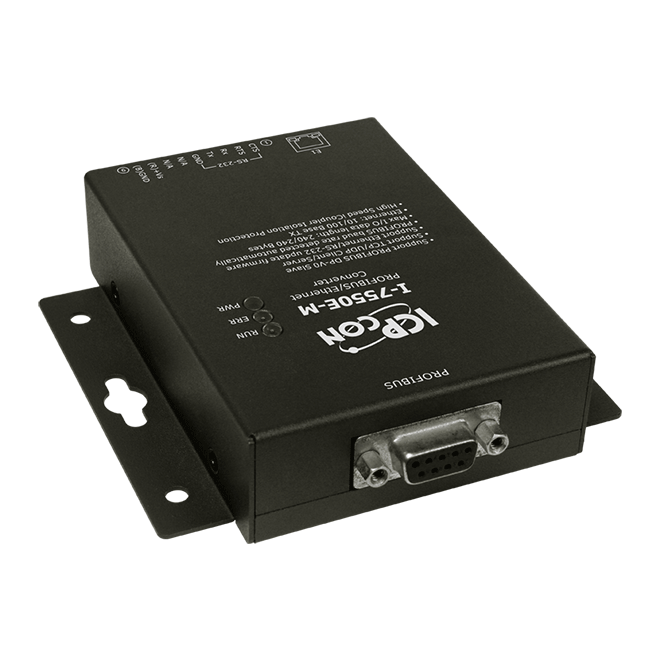

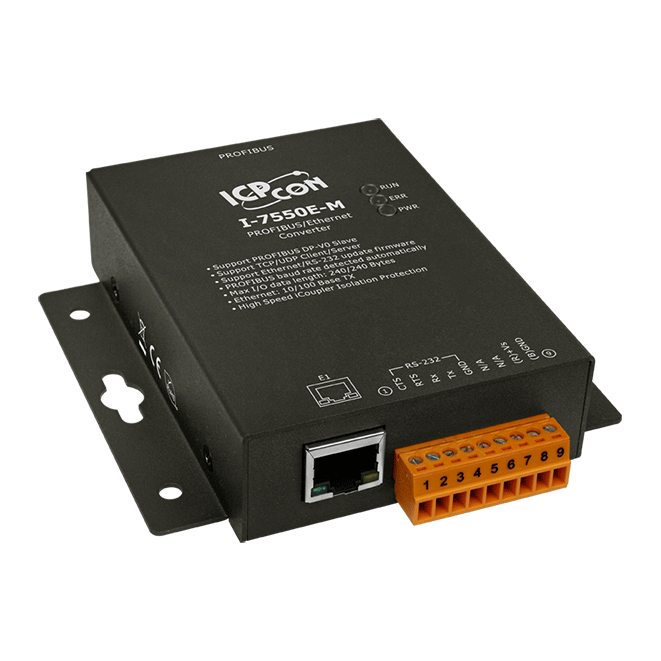

I-7550E-M

PROFIBUS to Ethernet Converter

Features

Protocol & Hierarchy : DP-V0 Slave
Transmission Rate Setting : detected automatically
Max Input Data Length : 240 Bytes
Max Output Data Length : 240 Bytes
Address Setting : 0~126 set by DIP switch or EEPROM
Supports Ethernet Protocol : TCP/UDP Server/Client
Configuration : Web Configuration
Network Isolation Protection : 2500 Vrms High Speed iCoupler
DC Isolation Protection : 3000 VDC on PROFIBUS side

Introduction

The I-7550E Converter is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access any kinds of Ethernet devices supporting TCP/UDP protocol. The I-7550E can be set as TCP/UDP server and client, it's flexible for user to match their requirement. In addition, the I-7550E module built-in web server, the user can set the module by web browser. By using this module, users can put their Ethernet devices into PROFIBUS network very easily.

Applications

Industrial Automation
Factory Automation
Process Automation
Etc…

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-7550E-M CR	DESCRIPTIONPROFIBUS to Ethernet Converter (Metal Case) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
CPU	80186, 80 MHz or compatible
EEPROM	16 KB
Flash	512 KB
SRAM	512 KB
Watchdog Timer	Watchdog IC CPU built-in

LED Indicators
Status	PWR LED, RUN LED, ERR LED

Ethernet
Ports	10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

COM Ports
Ports	RS-232 (For updating firmware) 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND )
Baud Rate	115200
Parity	None
Data Bit	8
Stop Bit	1

PROFIBUS
Controller	Profichip VPC3+C
Transceiver	ADI ADM2486
Baud Rate	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol	DP-V0
