I-7540DM-UTA
CAN to Ethernet Gateway
Features
- Compatible with the ISO 11898-2 standard
- Compatible with CAN specification 2.0A and 2.0B
- Support Web Configuration
- Support Virtual COM technology
- Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
- Message transmitted by using TCP/IP protocol and maximum 25 Ethernet client connections
- Jumper selectable for 120Ω terminal resistor for CAN channel
- Wide Operating Temperature Range: -40 ~ +75°C
Introduction
The I-7540D series are CAN to Ethernet converters, and are usually applied as an Ethernet to CAN/RS-232/485 Device Server. They support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D series also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications.

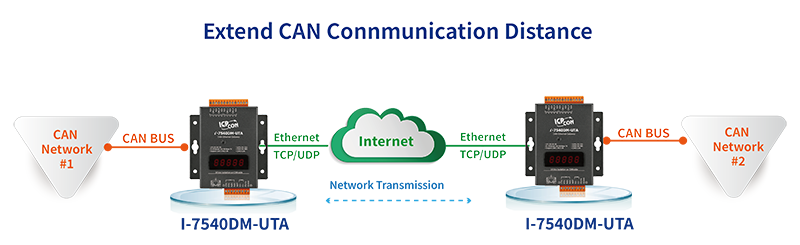

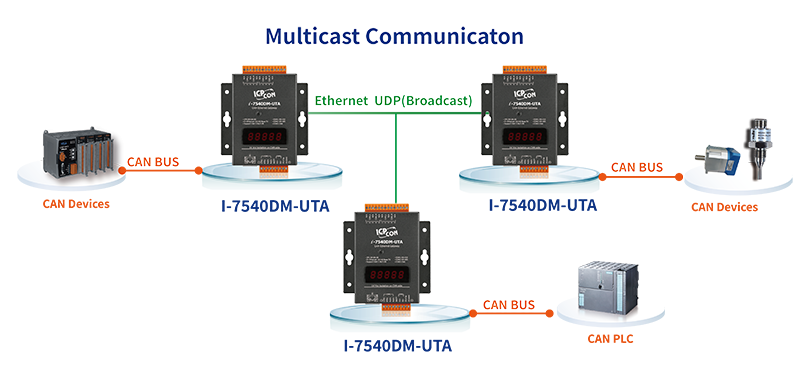

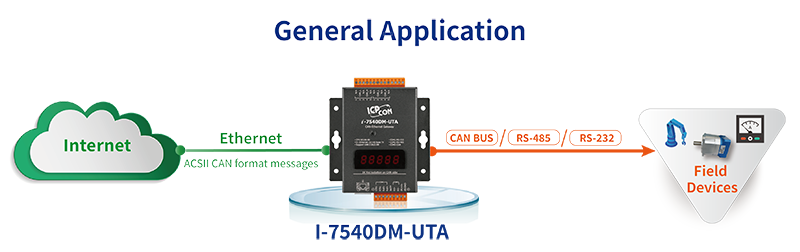

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x Power |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 (self-turner ASIC inside) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| CAN | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Filter | Yes |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 102 x 125 x 28 (W x L x H) |
| Installation | Wall Mount |
| Environment | |
|---|---|
| Operating Temperature | -40 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
- IP 、 Gateway 、 Mask configuration
- CAN bus Baud rate configuration
- CAN BTR0 and BTR1 configuration
- CAN acceptance filter configuration
- CAN 2.0A or 2.0B specific selection
- Error code Responded selection
- Easy test to transmit/receive CAN messages
Data Process
The VxComm technology can be used to simulate COM/CAN ports of the I-7540D to become a COM port of PC . With the help of VxComm driver, users can access the remote COM/CAN ports of the I-7540 just as them would access the PC's COM port. The block diagram of data processes in I-7540D is given as follows:
Performance Test
This test is the performance which transfer 8 bytes data frame(total 100000 frames) from CAN to Ethernet (one TCP client).| CAN Spec. | Baud Rate 1000K | Baud Rate 800K | Baud Rate 500K | Baud Rate 250K | Baud Rate 125K | Baud Rate 50K | Baud Rate 20K | Baud Rate 10K |
|---|---|---|---|---|---|---|---|---|
| CAN2.0A FPS(Avg.) |
2244 | 2237 | 2106 | 1483 | 989 | 410 | 174 | 88 |
| CAN2.0B PFS(Avg.) |
2227 | 2243 | 2114 | 1422 | 807 | 357 | 146 | 73 |
This test is the performance which transfer 8 bytes data frame(total 100000 frames ) from Ethernet to CAN (one TCP client).
| CAN Spec. | Baud Rate 1000K | Baud Rate 800K | Baud Rate 500K | Baud Rate 250K | Baud Rate 125K | Baud Rate 50K | Baud Rate 20K | Baud Rate 10K |
|---|---|---|---|---|---|---|---|---|
| CAN2.0A FPS(Avg.) |
2047 | 1899 | 1606 | 1154 | 741 | 380 | 155 | 86 |
| CAN2.0B PFS(Avg.) |
1852 | 1732 | 1446 | 1021 | 643 | 322 | 122 | 72 |
