I-7530A-MR-G

Modbus RTU to CAN Converter

Features

Fully compatible with ISO 11898-2 standard
Support CAN bus acceptance filter configuration
Support firmware update via RS-232

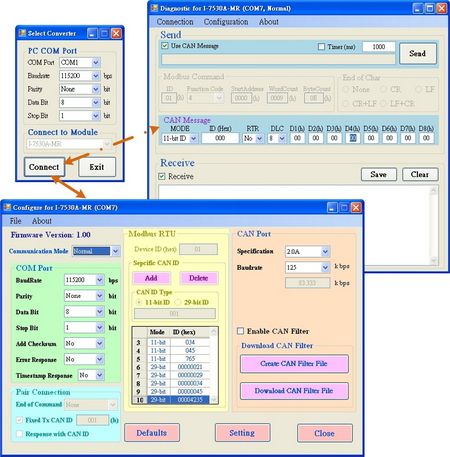

Provide utility tool for module setting and CAN bus communication testing
Built-in jumper to select 120Ω terminal resistor
CAN buffer: 128 data frames ; UART buffer: 256 bytes
Power, data flow and error indicator for CAN and UART status
Hardware Watchdog design
Convert CAN message to specific ASCII command string (Normal mode)
Convert specific ASCII command string to CAN message (Normal mode)
Provide the transparent communication between the RS-232/485/422 devices via CAN bus (Pair-connection mode)
In Modbus Slave mode, I-7530A-MR supports function code 0x03, 0x04, 0x06, and 0x10 of Modbus RTU command for reading or writing CAN message (Modbus Slave mode).
Support Modbus Master function

Introduction

The PLC, HMI and SCADA are popular in the various industrial control applications, but most of them don't provide CAN interfaces. Users always experienced difficulties due to connecting the sensors or actuators which only have a CAN interface. The basic function of I-7530A-MR is compatible with I-7530A, and the "MR" stands for "Modbus RTU". So, the I-7530A-MR supports Modbus RTU protocol in its RS-232/422/485 port. Modbus RTU is popular and widely supported by most of the PLCs, HMIs, and SCADAs. I-7530A-MR is helpful to use standard Modbus RTU protocol to access CAN networks without difficulties. And with the special designed firmware, beside normal received CAN message buffer, it offers special memory space to save up to 100 kinds of CAN messages which are urgent and must be processed immediately. The feature helps the PLC, HMI and SCADA to use Modbus RTU function code 3,4,16 to access CAN devices in a easy way. In Modbus RTU mode, it allows a Modbus RTU master to communicate with CAN devices on a CAN network. The following figure shows the application architecture of this mode.

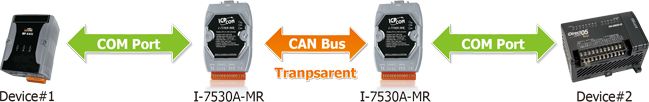

In pair-connection mode, this module provides the pair connection and transparent communication between the RS-232/485/422 devices via CAN bus. The application architecture may be as follows.

In the Modbus Master mode, it allows many Modbus RTU slaves to communicate with CAN devices on a CAN network. The following figure shows the application architecture in this mode. The Modbus master function can be supported in firmware version v1.11 or later.

Applications

Control System
Building Automation
Factory Automation
Distributed data acquisition

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-7530A-MR-G CR	DESCRIPTIONModbus RTU to CAN converter (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

LED Indicators
Status	1 x Power 1 x CAN status 1 x UART status

COM Ports
Ports	1 x RS-232 1 x RS-485 1 x RS-422 (these ports can’t be used simultaneously)
Baud Rate	300,600,1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bps

CAN
Ports	1
Baud Rate	10 k ~ 1 M bps
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Selectable 120Ω terminal resistor by jumper
Specification	ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter	Yes
Pin Assignment	C.I.A. DS-102 (CAN_H=7, CAN_L=2)
