I-7530A-MR-FD
Modbus RTU to CAN Converter
Features
- Fully compatible with ISO 11898-2 standard
- Support CAN bus acceptance filter configuration
- Support firmware update via RS-232
- Provide utility tool for module setting and CAN bus communication testing
- Built-in jumper to select 120Ω terminal resistor
- Hardware Watchdog design
- Convert CAN message to specific ASCII command string (Normal mode)
- Convert specific ASCII command string to CAN message (Normal mode)
- Provide the transparent communication between the RS-232/485/422 devices via CAN bus (Pair-connection mode)
- In Modbus Slave mode, supports function code 0x03, 0x04, 0x06, and 0x10
- Support Modbus Master function
- Support CAN FD
Introduction
I-7530A-MR-FD supports Modbus RTU protocol on RS-232/422/485 port, it is a Modbus RTU to CAN converter, it supports CAN2.0A/2.0B and CAN FD, and provides user-defined CAN Bus communication baud rate (arbitration field: 10Kbps to 1Mbps, CAN FD data field: 100Kbps to 10Mbps).
And with the special designed firmware, beside normal received CAN message buffer, it offers special memory space to save up to 100 kinds of CAN messages which are urgent and must be processed immediately. The feature helps the PLC, HMI and SCADA to use Modbus RTU function code 3,4,16 to access CAN devices in an easy way.
- Modbus RTU Slave/CAN FD Master Mode
In Modbus RTU mode, it allows a Modbus RTU master to communicate with CAN devices on a CAN network. The following figure shows the application architecture of this mode.
- Modbus RTU Master/CAN FD Slave Mode
In the Modbus Master mode, it allows many Modbus RTU slaves to communicate with CAN devices on a CAN network. The following figure shows the application architecture in this mode.
- Pair-Connection Mode
In pair-connection mode, this module provides the pair connection and transparent communication between the RS-232/485/422 devices via CAN bus. The application architecture may be as follows.

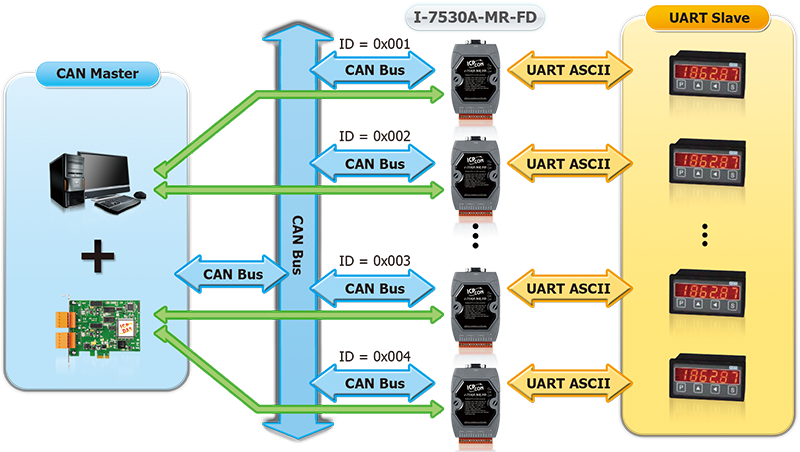

- UART Switch Mode
In UART Switch mode, the I-7530A-MR-FD can convert CAN messages to UART ASCII or convert UART ASCII to CAN messages.
Applications
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x CAN status 1 x UART status |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 1 x RS-422 (these ports can’t be used simultaneously) |
| Baud Rate | 300,600,1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bps |
| CAN | |
|---|---|
| Ports | 1 |
| Baud Rate | CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10M bps (*Note1) |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Selectable 120Ω terminal resistor by jumper |
| Specification | ISO-11898-2,CAN2.0A and CAN2.0B and FD |
| Filter | Yes |
| Pin Assignment | C.I.A. DS-102 (CAN_H=7, CAN_L=2) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 118 x 35 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
Note1: The maximum CAN FD data rate can be exceeded depending on the concrete operating conditions (cable length, network topology, settings,...), but it can also not be reached.
