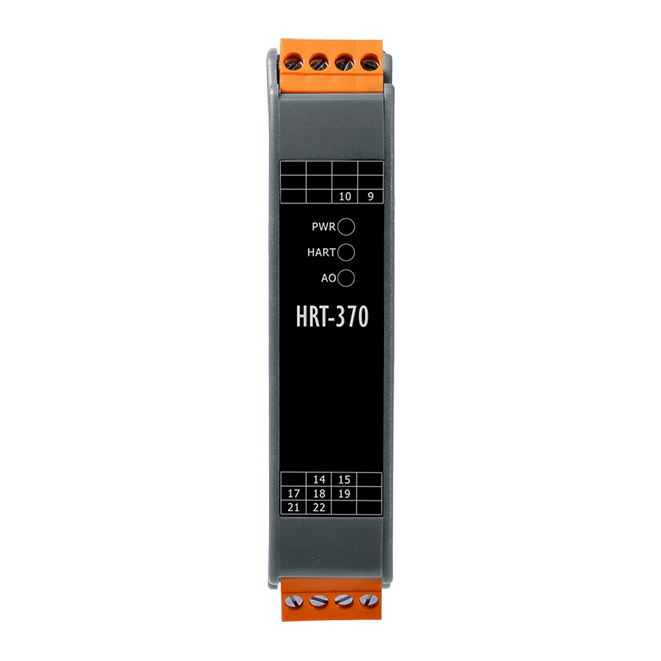

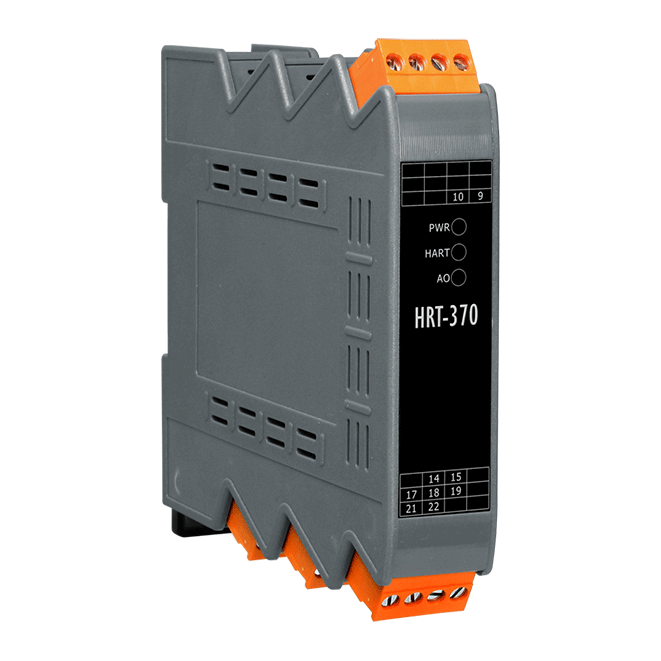

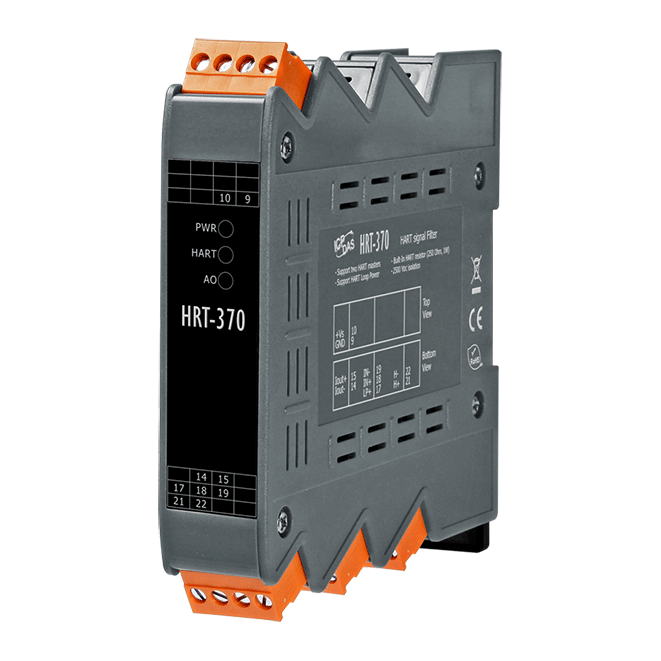

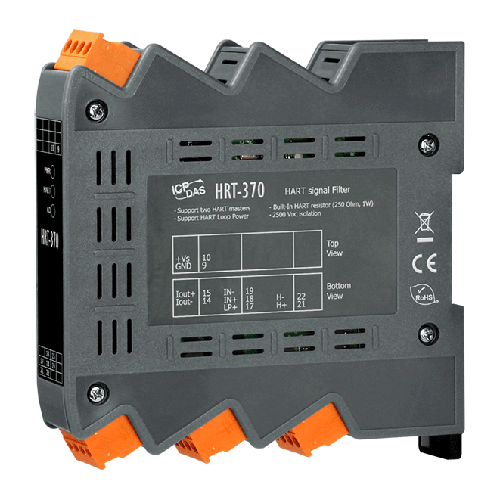

HRT-370

HART signal filter

Features

1 analog current output (HART signal filter) channel
1 by pass HART signal channel
Support HART Burst mode
Support point-to-point HART mode
Allow two HART masters
Support Loop Power function (module provides +30V)
4KV ESD Protection
250Ω load resistor

Introduction

HRT-370 is a HART signal filter specially designed to solve the issue that analog signal gets interfered while additional HART signal adding to communication process. When connecting HRT-370 to a HART instrument, it splits the input HART signal to two output channels, one keeps the original HART signal and another filter the HART signal out to output pure analog signal. Therefore, users can make both HART and analog current data collection and processing easier and more precise by applying HRT-370.

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES HRT-370 CR	DESCRIPTIONHART Signal Filter (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

LED Indicators
Status	PWR: Module power status HART: HART connection status AO: AO connection status

Analog Output
Zero Drift	± 0.1% FSR @25 °C ± 0.5% FSR @-30/+80°C
Span Drift	± 0.1% FSR @25 °C ± 0.5% FSR @-30/+80°C
Response Time	40ms @ 250 Ω
Voltage Output Capability	External +30V @ 800Ω (Sink)
Isolation	2500VDC

HART
Device	2-wired or 4-wired HART devices (Point to Point)
Isolation	2500 VDC
Input Impedance	250Ω±5% (2W)
Loop Power	Yes (module provides +30V output)
Auxiliary Supply	24V @ 20mA

Power
Reverse Polarity Protection	Power reverse polarity protection, Over-voltage brown-out protection
Input Range	Unregulated +10 ~ +30 VDC
Consumption	Maximum: (20mA) => 0.05mA @ 30VDC, 1.5W

Mechanical
Dimensions (mm)	25 x 116 x 120
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	5% ~ 95% RH, Non-condensing
