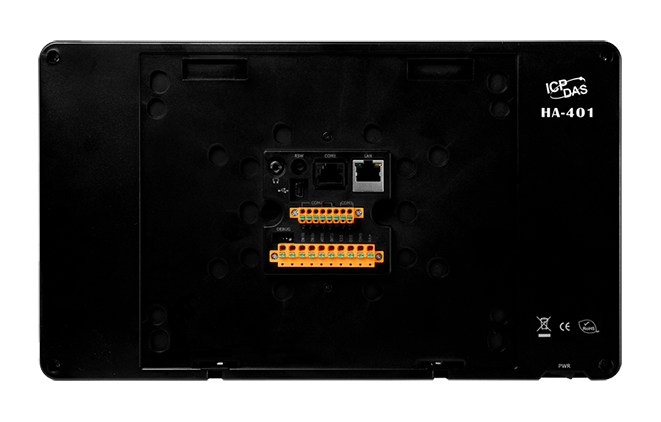

HA-401

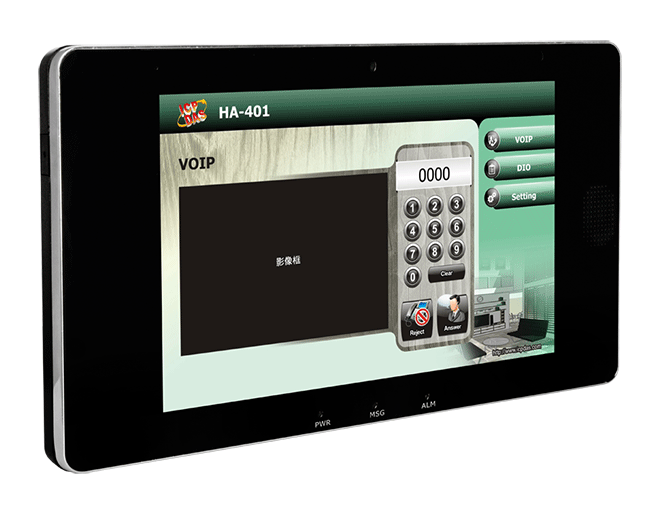

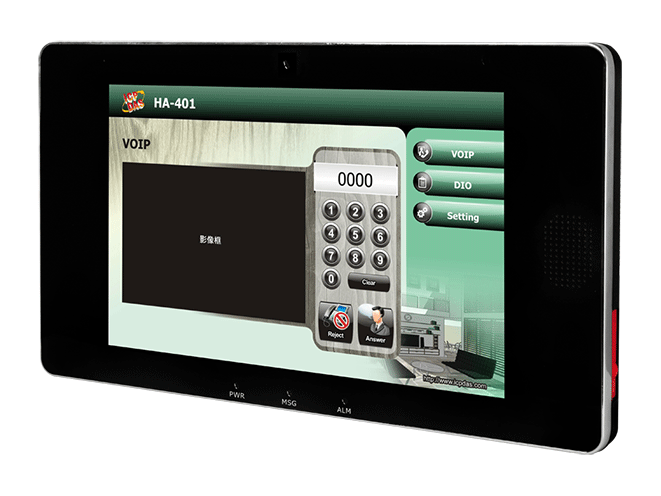

Security Situation Control Intercom Host with 10.1" LCD display
Features
- Full-duplex voice and video intercom (Support SIP)
- 10.1" WXGA color TFT-LCD touch screen
- Full HD Front-facing camera (1080p)
- Display for the date, time, temperature, humidity, PM2.5, and noise levels
- Smart home control (lighting, TV, air conditioner...)
- Energy monitoring and management capabilities
- Community announcements and publish advertising
- Interactive M2M transmission technology: MQTT, LINE
Introduction
HA Series is an intercom host that supports security situation in following scenario: security alarms, community bulletins, interior environment control, visitor intercom, and push advertising. Furthermore, integrating functions related to the message notifications, to adopt into advanced automatic control to realizes intelligent control.
HA-401 support standard communication protocols like Modbus RTU/ASCII and Modbus TCP. Combine with back-end software for Smart Home System can achieve intelligent indoor control like home lighting, air conditioning, curtains, and security.
Applications
- Video Conversation
- Environmental Monitoring
- Security Alarm
- Information Notice
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| CPU | 32-bit, 1000 MHz |
| EEPROM | 128 KB; Data Retention: 40 years; 1,000,000 erase/write cycles |
| Flash | NAND Flash 4 GB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Display | |
|---|---|
| Type | 10.1" TFT (Resolution 1280 x 800) |
| Backlight Life | 20,000 hours |
| Brightness | 350 cd/m2 |
| Touch Panel | 5-wire, analog resistive; Light Transmission: 80% |
| Digital Input | |
|---|---|
| Channels | 2 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Relay Output | |
|---|---|
| Channels | 2 (1 x Form A, 1 x Form c) |
| Electrical Endurance | Form A: 1 × 10^5 ops Form C: 5 × 10^5 ops |
| Mechanical Endurance | Form A: 2 x 10^7 ops Form C: 1 x 10^8 ops |
| HMI | |
|---|---|
| Camera | 1080P (1920 x 1080), CMOS Sensor |
| Audio | AMP 2.5 W; Digital microphone |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 1, 10/100 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports | COM1: RS-485 x1 (TB and RJ-11) COM2: RS-232/485 x1 (TB) |
| USB | |
|---|---|
| Specification | 1 (Client/Mini-USB) |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 12 V ~ 48 VDC |
| Consumption | 4.0 W |
| Powered from PoE | Yes |
| Mechanical | |
|---|---|
| Dimensions (mm) | 311 x 36 x 181 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -10℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Humidity | 10% ~ 90% RH, Non-condensing |
