GW-7238D-G
J1939 to Modbus TCP Server / RTU Slave Gateway
Features
- Built-in jumper to select 120 ohm terminal resistor
- Watchdog inside
- Transmission and reception of all types of J1939 messages, including PDU1, PDU2, broadcast and destination specific
- J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes)
- Supports BAM of Connection Management Message
- Network addresses management
- Supports Modbus TCP server / RTU slave protoco
Introduction

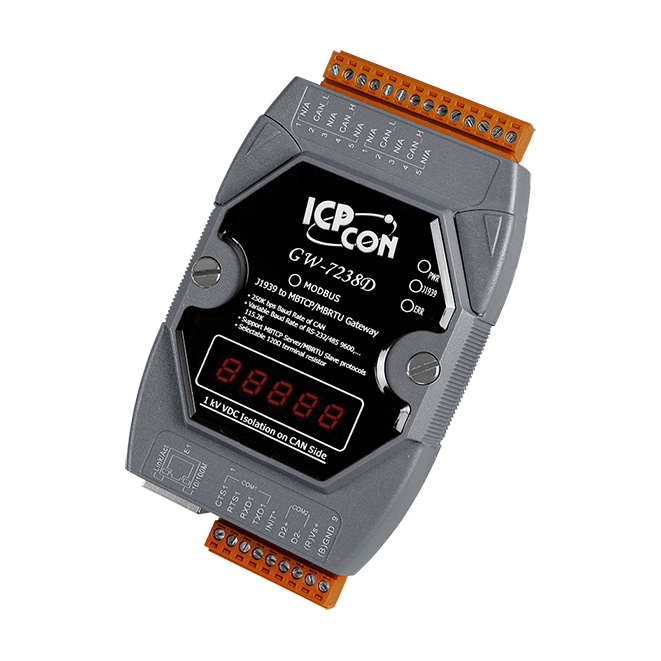

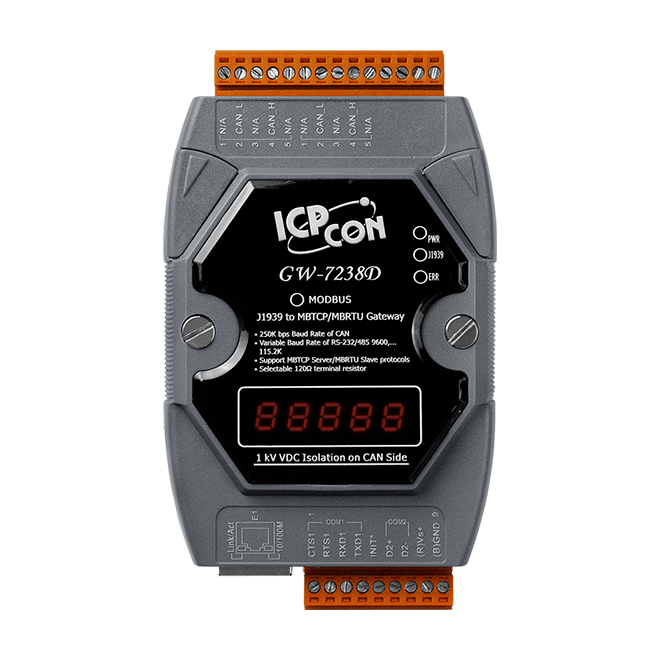

The GW-7238D is a gateway that provides conversion between J1939 and Modbus TCP/RTU protocol. For J1939 network, the GW-7238D supports PDU1, PDU2, broadcast and destination specific type of J1939 messages. For Modbus TCP/RTU network, the GW-7238D is a Modbus TCP server / RTU slave to reply the request from Modbus TCP client / RTU master. Utility software is provided for users to configure J1939 and Modbus TCP/RTU setting in the GW-7238D. The application fields can be diesel power-train applications, In-Vehicle networks for trucks and buses, etc.
The following figure shows the application architecture for the GW-7238D
Applications
- Diesel power-train applications
- Diesel power-train applications
- In-Vehicle networks for trucks and buses
- Truck-Trailer connections
- On Board Diagnostics
- Vehicle Automation
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| LED Indicators | |
|---|---|
| Status | PWR / J1939 / MODBUS / ERR |
| Ethernet | |
|---|---|
| Protocol | RJ-45 with LED indicator / Modbus TCP |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 (Self-turner inside) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 |
| Protocol | Modbus RTU |
| J1939 | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 250 k |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power | |
|---|---|
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 122 x 72 x 33 (L x W x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
- Provide Modbus network configuration interface
- Provide J1939 network configuration interface – Network Address / Device Name, etc
- Provide J1939 Input / Output configuration interface
- Provide Modbus monitoring interface
GW-7238D Utility Main Screen
Modbus monitoring table
Comparison Table
|
ICP DAS Fieldbus Gateways Comparison Table:
|
|||
| Model | Support Protocol | Comm. Interface | |
|---|---|---|---|

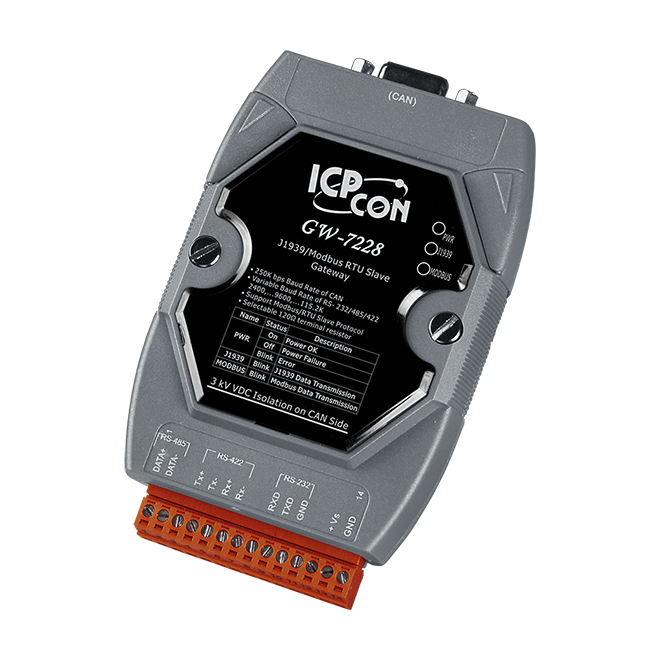

| GW-7228 | J1939 | Modbus RTU lave | RS-232 RS-422 RS-485 |
