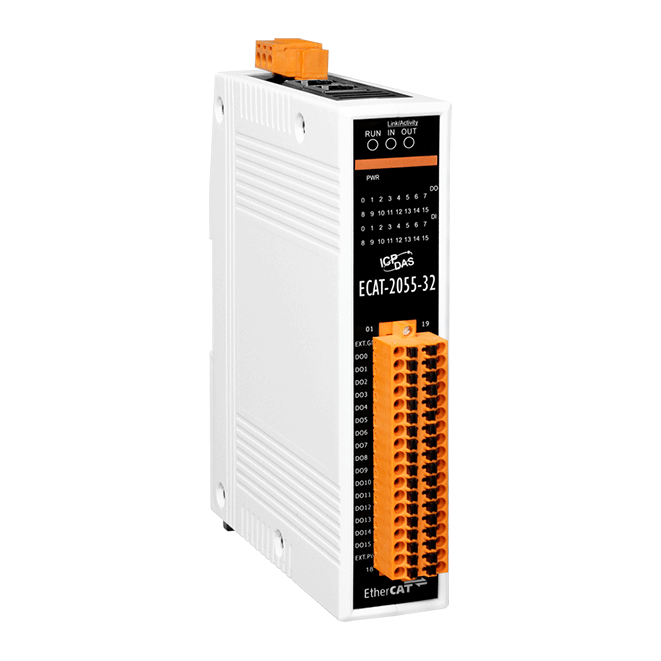

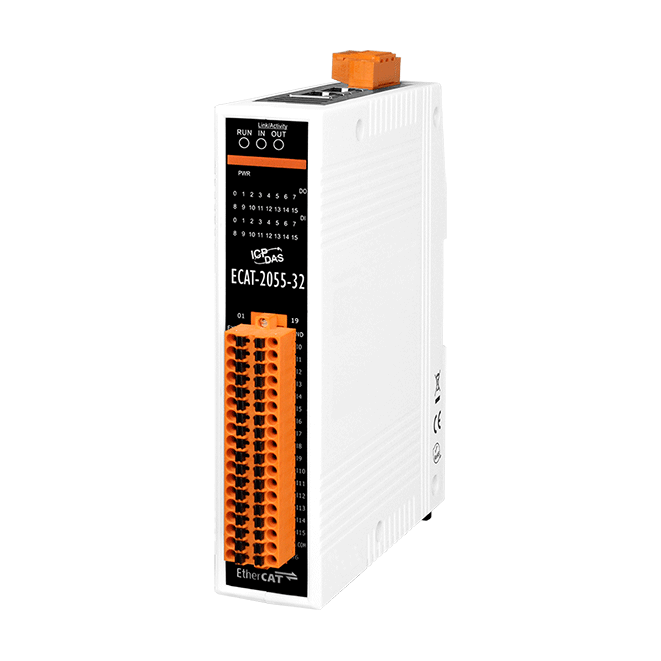

ECAT-2055-32
EtherCAT SubDevice I/O Module with Isolated 16-ch DI and 16-ch DO
Features
• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic

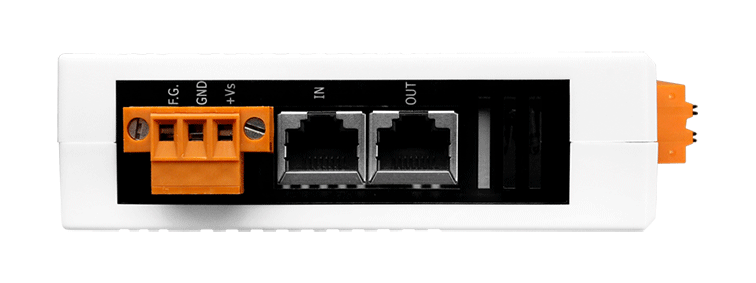

• 2 x RJ-45 bus interface
• Distance between Stations up to 100 meters (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector

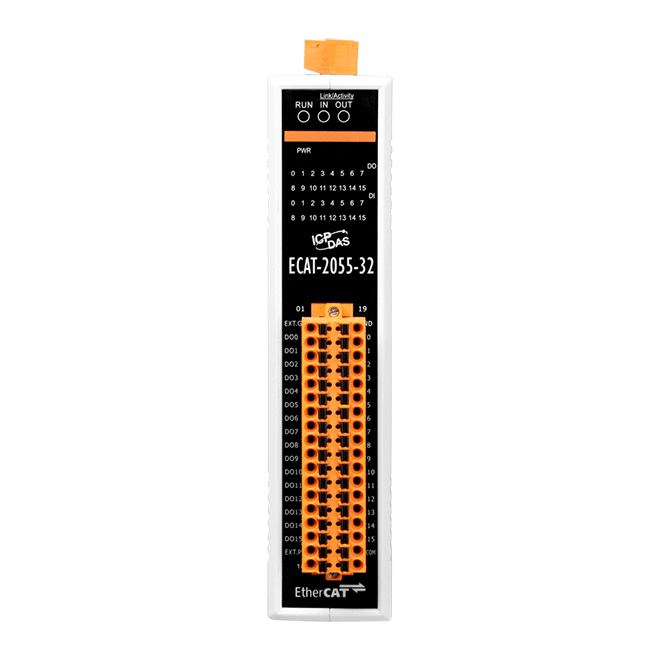

• LED indicators for the I/O status
• Built-In digital I/O: 16-ch DI and 16-ch DO
• ESD Protection 4 KV Contact for each channel
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which allows the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be set up as a star, line or ring network topologies. The isolation input and output design protect the ECAT-2000 against the harmful interference and environment. The ECAT-2055-32 is built-in isolated 16 digital inputs and 16 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool; therefore eligible EtherCAT Main Device or configurator can operate it with ease and implement various applications easily.
Applications
• Semiconductor Tools
• Metal Forming
• Packaging
• Injection Molding
• Assembly Systems
• Printing Machines
• Robotics
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Dry+Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 V ~ +50 V |
| OFF Voltage Level | Dry: Open Wet: +4 V Max. |
| Isolation | 3750 VDC |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink , NPN |
| Load Voltage | +3.5 VDC ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Isolation | 3750 Vrms |
| EtherCAT | |
|---|---|
| Ports | 2 x RJ-45 |
| Distance Between Stations | 100 m Max. (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 1 ms |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W Max. |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
