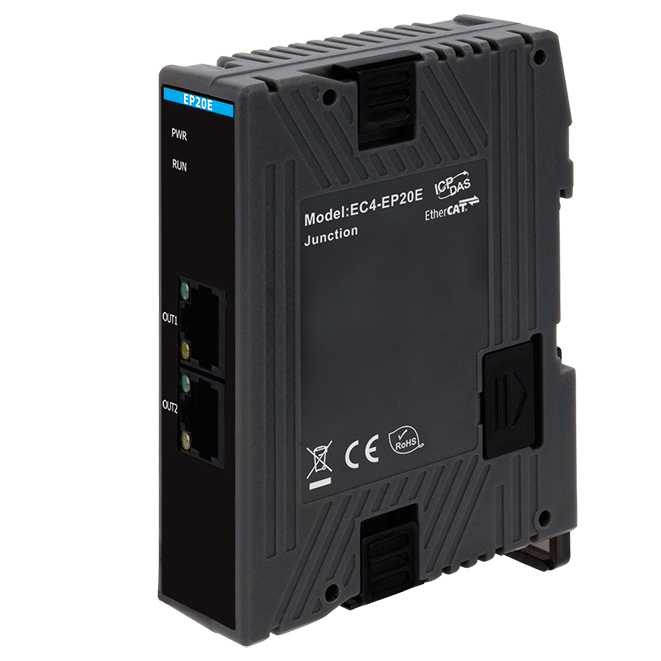

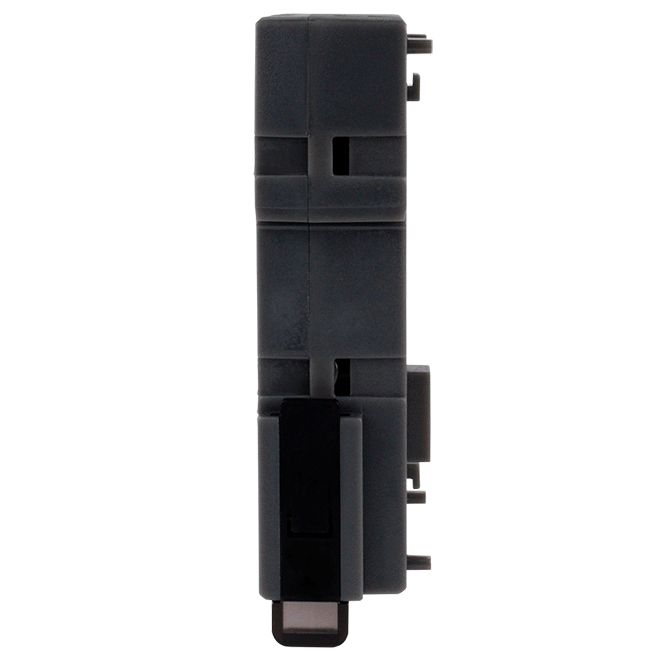

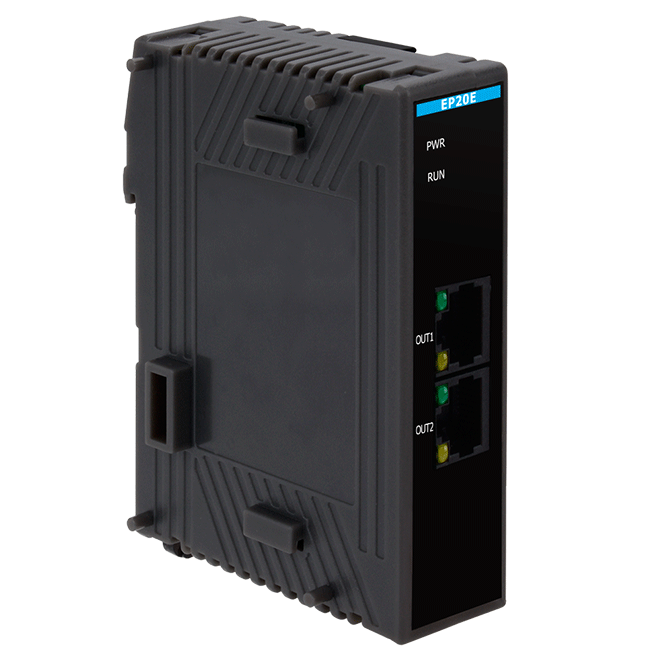

EC4-EP20E
2-Port EtherCAT Junction
Features
- Expanded EtherCAT network port
- 2 x RJ45 interface
- Distance between stations up to 100 m (100BASE-TX)
- Can be used for configuring an EtherCAT star topology
Introduction
The EC4-EP20E is equipped with two EtherCAT RJ45 sockets, which can be used at the end of the EC4 series modules to enable daisy-chain and branch wiring configurations. The maximum extension distance is 100 meters.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±8KV(Air for Random Point) |
| EtherCAT | |
|---|---|
| Ports | EtherCAT, 2 x RJ45 (2 x OUT) |
| Distance Between Stations | Max.100 m (100BASE-TX) |
| Data Transfer Medium | Ethernet/EtherCAT Cable (Min. CAT 5), Shielded |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 1.5W Max |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 31 x 108 x 74 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
