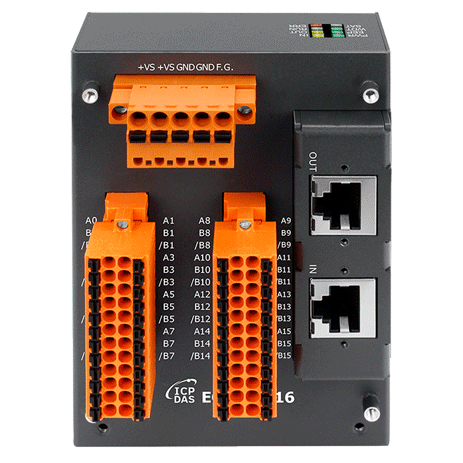

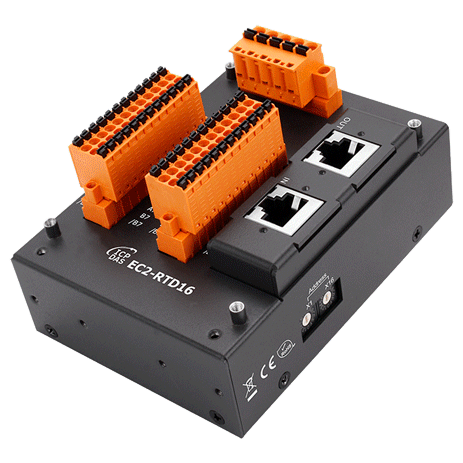

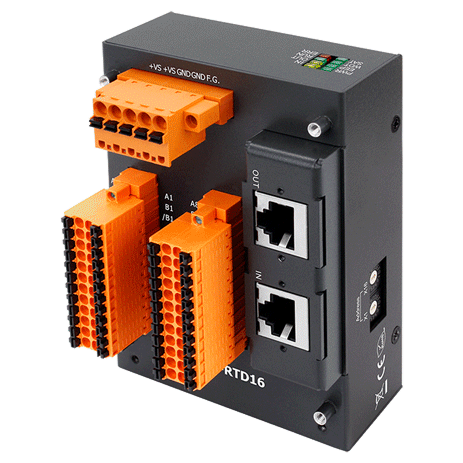

EC2-RTD16
EtherCAT Slave I/O Module with 16-channel RTD Inputs
Features
- On the fly processing: EtherCAT
- 2 x RJ-45 bus interface
- Distance between stations up to 100 m (100 BASE-TX)
- Support daisy chain connection
- Built-In 16-channel RTD Intputs
Introduction
The EC2-RTD16 is an industrial slave I/O module built in 16 RTD intputs. That provides 90Hz high-speed measurement and open wire detection for each channel. Each channel can be connected to diff erent types of RTD sensors and supports 3-wire RTD lead wire compensation, ensuring accurate measurements regardless of wire length. It is equipped with the EtherCAT protocol and installed by daisy chain connection that provides a more scalable system with fewer wires. The EC2-RTD16 has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Analog Input | |
|---|---|
| Channels | 16 |
| Type | Pt100, Ni120, Cu50, Cu100 |
| Resolution | 16-bit |
| Accuracy | Fast Mode：±0.1 % of FSR ( 25℃ ) Normal Mode：±0.05 % of FSR ( 25℃ ) |
| Sampling Rate | Fast Mode：90 Hz ( per channel ) Normal Mode：1.5Hz ( per channel ) |
| Input Impedance | > 1 MΩ |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| EtherCAT | |
|---|---|
| Ports | EtherCAT, 2 X RJ45 |
| Node ID | Up to 256 |
| Distance Between Stations | Max. 100 m (100 Base-Tx) |
| Data Transfer Medium | Ethernet/EtherCAT cable (min. CAT5), shielded |
| Cycle Time | 100 us |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Casing | Metal with IP40 |
| Dimensions (mm) | 83 x 112 x 68 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
