DB-1825/2

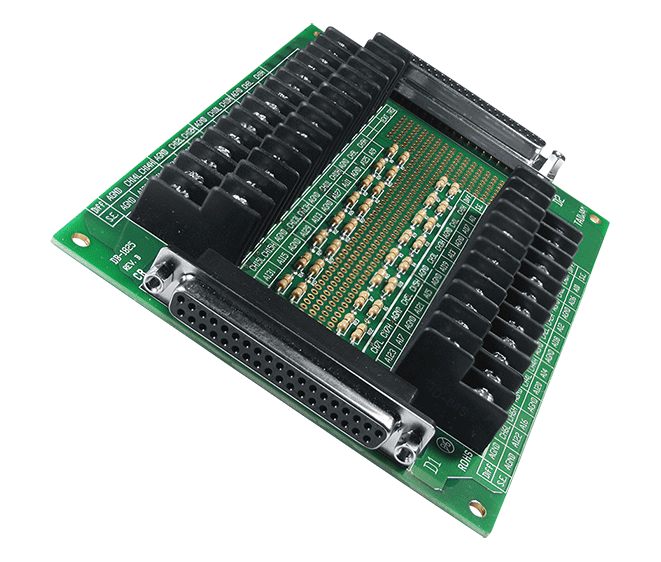

Female DB37 to Screw Terminal Board for PCI-1202U/1602U/1802U/822/826
Features
- Screw terminal board using 37 pin cable I/O ports for PCI-1202U/1602U/1802U/822/826 series , (32 channel single-ended ,16 channel differential)
- Blank pads for break detection, Low-pass filter , current shut and voltage divider (manual soldering)
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
| PRODUCT SERIES DB-1825/2 CR | DESCRIPTIONFemale DB37 to Screw Terminal Board for PCI-1202/1602/1802/822/826 (RoHS) Include: CA-3720 (DB37 Male to Male, 45º, 2M) |
|
This combination include other products.
Similar Products
| Mechanical | |
|---|---|
| Dimensions (mm) | 170 mm x 114 mm |
| Environment | |
|---|---|
| Operating Temperature | 0~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
