CAN-2057D
DeviceNet Slave Module of 16-channel Isolated (Sink, NPN) DO
Features
- DeviceNet general I/O slave devices
- Group 2 Only Server (non UCMM-capable)
- Support Predefined Master/Slave Connection Set
- Connection supported:
- 1 connection for Explicit Messaging
- 1 connection for Polled I/O
- 1 connection for Bit-Strobe I/O connection
- Support DeviceNet heartbeat and shutdown messages
- Provide EDS file for DeviceNet master interface
- Support Application: Drive Relay, Resistance Load
- ESD Protection 4 kV Contact for each channel
Introduction
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2057D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital output status and set the configuration via DeviceNet EDS file. The CAN-2057D has 16 Digital output channels with Open Collector output type and can be used to develop powerful and cost effective digital control system. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

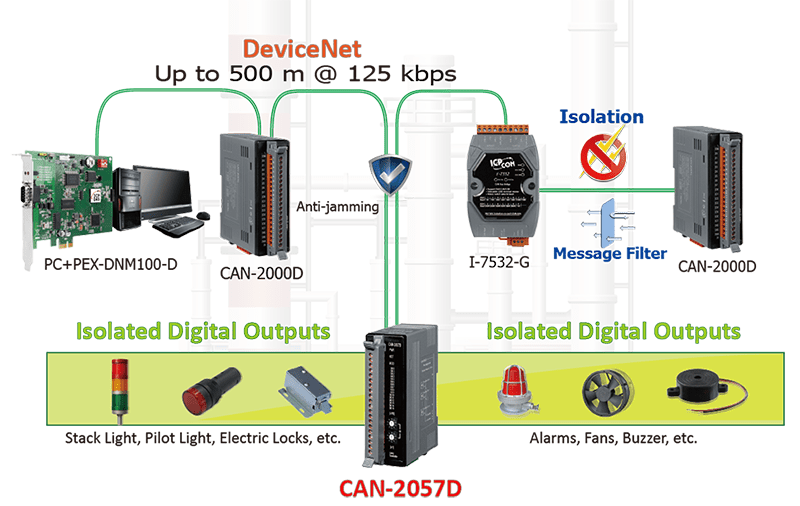

Applications
- Alarm output
- Switch control
We have communicated with the following DeviceNet masters or gateways.
- Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
- OMRON CJ1W-DRM21
- OMRON CS1W-DRM21-V1
- OMRON C200HW-DRM21-V1
- OMRON 3G8F7-DRM21-E
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x Power 2 x DeviceNet status |
| Digital Output | |
|---|---|
| Channels | 16 (Sink) |
| Type | Open Collector |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA per channel |
| Intra-module Isolation | 3750 Vrms |
| DeviceNet | |
|---|---|
| Ports | 1 |
| Connection Supported | 1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O |
| Baud Rate | 125 kbps, 250 kbps, 500 kbps |
| Terminal Resistor | Switch for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0, Errata5 |
| Node ID | 0 ~ 63 |
| Shutdown Message | Yes |
| Heartbeat Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 32.3 x 99 x 77.5 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
