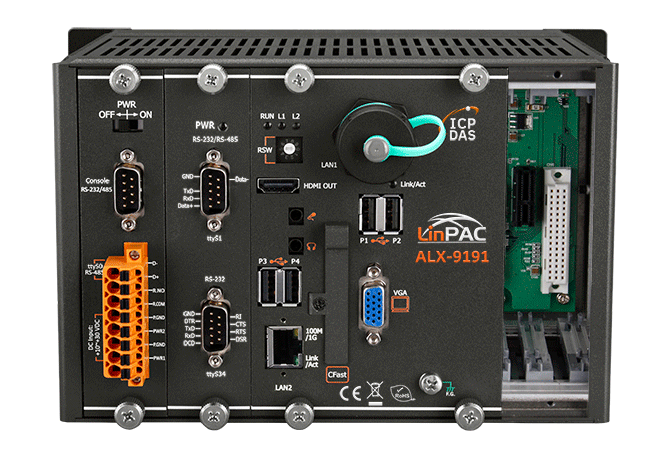

ALX-9191
1-slot Linux Based Metal PAC with E3950 CPU
Features
• Linux Ubuntu 20.04 with Kernel 5.4
• Intel® Atom E3950 Processor (1.6 ~ 2.0 GHz, 4C4T)
• 8 GB DDR4 SDRAM
• 64 GB SSD
• Hard Real-Time Capability
• VGA / HDMI Display Output
• Built-In Real-time clock
• 2 10/100/1000M Ethernet Ports
• 4 Serial Ports (RS-232/485)
• Redundant Power Input
• Intel® Atom E3950 Processor (1.6 ~ 2.0 GHz, 4C4T)
• 8 GB DDR4 SDRAM
• 64 GB SSD
• Hard Real-Time Capability
• VGA / HDMI Display Output
• Built-In Real-time clock
• 2 10/100/1000M Ethernet Ports
• 4 Serial Ports (RS-232/485)
• Redundant Power Input
Introduction
The ALX-9000 are Linux based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E390 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , HDMI, USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our e-9K, I-9K and I-97K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.
User's programs can be saved in external storage device, such as CFast Card or USB mass storage device. LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when e-9K/I-7k/9k/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly.
User's programs can be saved in external storage device, such as CFast Card or USB mass storage device. LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when e-9K/I-7k/9k/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Ubuntu 20.04 with Linux kernel 5.4 |
| Service | SFTP server, Web server, SSH |
| SDK | Standard LinPAC SDK for Linux by GNU C language |
| Main Unit | |
|---|---|
| CPU | Intel Atom® Processor Apollo Lake E3950, 1.6 ~ 2.0 GHz, 64-bit, 4C4T |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 8 GB DDR4 SDRAM |
| Storage | 1 x 64 GB SSD (SATAIII) 1 x 32 GB CFast card (SATAIII) |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | 1xVGA, 1xHDMI |
| Resolution | VGA 1920 x 1200 @ 60Hz HDMI 4096 x 2160 @ 30P |
| LED Indicators | |
|---|---|
| Status | 1 x System 2 x Power 2 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | I-9K, I-97K, e-9K series |
| Slots | 1 x serial/parallel bus 1 x e-Bus |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Power Switch | Yes |
| Audio | |
|---|---|
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Intel® Ethernet Controller I210IT) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (3000 VDC Isolated) 1 x RS-485 (3000 VDC Isolated) 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
|---|---|
| Ports | 2 x USB 2.0 2 x USB 3.0 |
| Power | |
|---|---|
| Input Range | +19 ~ 30 VDC (2 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 19 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 239 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
