Introduction:

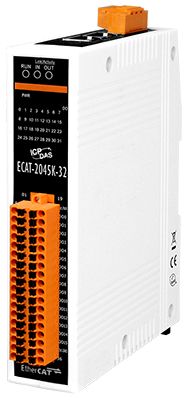

The ECAT-2000 is equipped with the EtherCAT protocol and can be installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference in harsh environments. The ECAT-2045K-32 is built in with isolated 32 digital outputs. Users can obtain the input and output status via the process data or simply identify the status from its LED indicators. It has passed and has been verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can operate it and implement various applications easily.

For more information, please refer to the relevant website and documents for these devices, which can be found at the following link:
https://www.icpdas.com/en/product/ECAT-2045K-32




Features:

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 bus interface
• Distance between Stations can be up to 100 meters (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the output status
• Built-In 32-ch digital outputs (Sink)
• Keep output values after state machine change
• ESD Protection 4 KV Contact for each channel
