Introduction:

The CCON protocol is one of the application layer protocol on the CAN bus. It was developed by the ICP DAS. The CCON protocol is a simple and effective protocol for industrial automation applications. Based on the CAN bus layer, it could provide many safe and robust communication mechanisms like arbitration, error detection, error correction and etc. It could help to establish the CAN network application fast and easily.

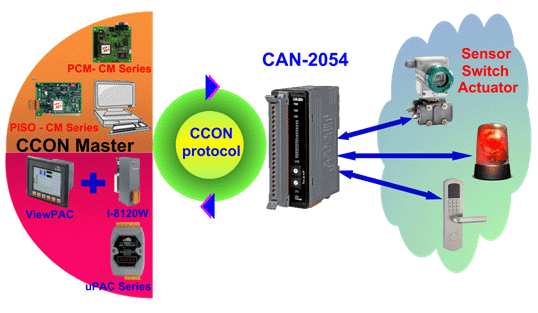

The CAN-2054 module follows the CCON version 2.00. You can access the digital I/O status and set the configuration by using the CCON protocol. The CAN-2054 has 8-channel isolated sink/source input and 8-channel isolated sink output, and it can be used in various applications, such as building automation, factory automation, machine automation, distributed data acquisition and so forth. By owing to the CCON masters of ICP DAS, you can quickly build a CCON network to approach your requirements. For more information about the CCON master interfaces and other CCON products, please refer to the following web site.
https://www.icpdas.com/en/product/guide+Industrial__Communication+Fieldbus__Communication+CANopen#568



Features:

• ESD protection 4 kV Contact for each channel.
• Intra-module Isolation 3750 Vrms.
• Provides switch for 120 Ω terminator resistors.
• Provides the pair-connection function
• Provides DI /DO LED’s display.
• Supports CCON transfer-rate 10K, 20K, 50K, 125K, 250K, 500K, 800K, 1M bps.
• Supports maximum CCON slave devices Node-ID up to 99
• Operates temp. -25 ~ +75 °C
• PWN, RUN, ERROR LED indicator.
• CCON Version: V2.00
