Introduction

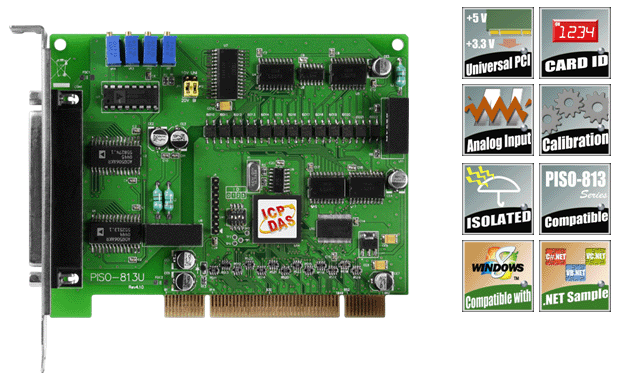

The PISO-813U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PISO-813U card is designed as a drop-in replacement for the PISO-813, and users can replace the PISO-813 by the PISO-813U directly without software/driver modification.

The PISO-813U card is bus-typed isolated A/D board for IBM or compatible PC. The PISO-813U universal PCI card supports 3.3 V/5 V PCI bus. It features 12-bit 32 single-ended analog inputs, 3750 Vrms bus-typed isolation protection and 10 kS/s data acquisition under DOS and Windows. It is the most cost effective isolated A/D board for the universal PCI/PCI Bus in the world. The PISO-813U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PISO-813U cards in one computer.

The PISO-813U card support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.




Feature:
	Universal PCI interface, supports both +5V and +3.3V PCI bus.
	Card ID function: Users can set Card ID to recognize sequence of card when using two or more I/O cards of the same model in one computer.
	32 single-ended analog input channels Bipolar: +/-10 V,+/-5 V, +/-2.5 V, +/-1.25 V, +/-0.625 V Unipolar: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
	Compatible with software of PISO-813 Fully compatible with the PISO-813 series product
	Support .NET program Provide Microsoft Visual C#.NET 2005 sample programs Provide Microsoft Visual Basic.NET 2005 sample programs Provide Turbo C++, Borland C++, Microsoft C++ sample programs Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs
	Supports Microsoft Windows 8 32/64-bit version OS Support Windows 98/NT/2000 and XP/2003/Vista/7 32-/64-bit version OS
	3750 Vrms bus isolation protection Built-in DC/DC converter with 3000 VDC protection
	Hardware calibration, the calibration is performed under VR control.

For more information, please visit the PISO-813U web site.
