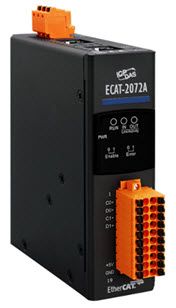

ECAT-2072A: EtherCAT Two-Channel BiSS-C/SSI Absolute Encoder Master
New Products
2026-10-08
Introduction:
The ECAT-2072A is an EtherCAT slave that functions as an absolute encoder master. It provides two independent channels and supports two serial transmission interfaces: SSI (Serial Synchronous Interface) and BiSS-C (BiSS Continuous Mode, unidirectional). The ECAT-2072A supports a maximum transmission frequency of 10 MHz and up to 48 bits of transmission data (including error, warning and CRC bits in BiSS-C mode). In BiSS-C mode, it automatically compensates for cable delays. The maximum supported cable length is 70 meters.
Features:
- EtherCAT slave
- 2-channel absolute encoder master
- Transmission interfaces: SSI and BiSS-C (unidirectional)
- Maximum transmission frequency: 10 MHz
- Transmission data format: binary code and Gray code
- Maximum transmission data length: 48 bits (including error, warning and CRC bits in BiSS-C mode)
- Automatic cable-delay compensation in BiSS-C mode; maximum supported cable length: 70 meters
- BiSS-C mode supports error and warning status bits and CRC checking
- Two 16-position rotary switches for setting the EtherCAT alias address
| Model | EtherCAT | Encoder Input | |||||
|---|---|---|---|---|---|---|---|
| Cycle Time | Distributed Clocks | Type | Channels | Resolution/ Seral Input |
Frequeency | Interface | |
| ECAT-2072A (New) | 0.1 ms | Yes | 絕對型 | 2 | Max 48-bit | 10 MHz | BiSS-C SSI |
| ECAT-2074A | 0.2 ms | 4 | |||||
