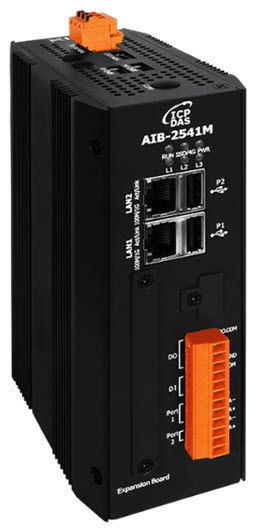

The AIB-2541M series is a fanless, secure, compact, and low-power edge AI controller powered by an ARM Cortex-A76 processor. It provides an M.2 expansion slot for various AI accelerator modules, enabling scalable, high-performance, and energy-efficient AI computing at the edge for industrial applications. For I/O expansion, optional high-protection XV-Board/XB-Board modules are available. In addition, the system provides a microSD card slot and an M.2 Key M slot for NVMe SSD expansion, allowing users to store applications, images, and data while conveniently expanding storage capacity.


The AIB-2541M/S1 comes equipped with a Hailo-8 Lite AI accelerator, delivering 13 TOPS of AI performance while consuming only 1.5 W of power. This edge AI computing platform simplifies deployment and offers excellent scalability and customization options, making it ideal for a wide range of AI and Industrial IoT (IIoT) applications

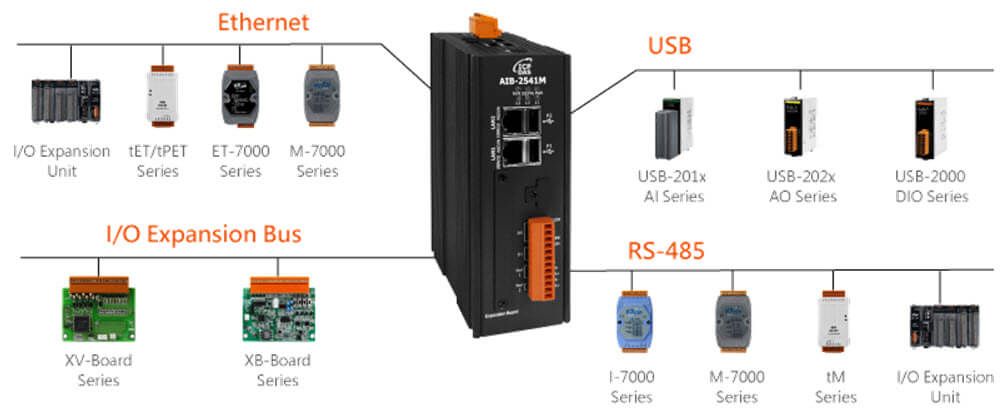

To meet the diverse requirements of Industrial IoT (IIoT) applications, the AIB-2541M provides a rich set of I/O interfaces, including two RS-485 serial ports, two Gigabit Ethernet ports, two USB 2.0 ports, and two USB 3.0 ports. An I/O expansion slot is also available for connecting additional external devices and expansion modules.
