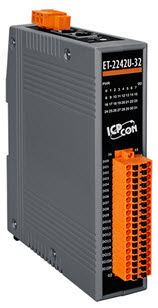

(P)ET-2242U-32: (PoE) Ethernet I/O Module with Digital Output and 2-Port Ethernet Switch
New Products
2025-03-25
ET-2242U-32.jpg)
Introduction:
The (P)ET-2242U-32 is a PoE-enabled version of the ET-2242U. It supports both DC and PoE power supply options. Both models share the same hardware specifications and firmware. Customers can choose between PET-2242U-32 version with PoE + DC power supply, or the ET-2242U-32 version with only DC power supply, depending on their application needs.
The (P)ET-2242U-32 is an IP-based Ethernet I/O monitoring and control module that provides a variety of digital I/O functions. It can be remotely operated over a 10/100 Mbps Ethernet network using the Modbus TCP/UDP protocol.
The module supports DI-to-DO pair-connection over the Ethernet. Once configured, it continuously reads the status of remote DI channels and then write the corresponding values to local DO devices via the Modbus TCP protocol.
The (P)ET-2242U-32 is an IP-based Ethernet I/O monitoring and control module that provides a variety of digital I/O functions. It can be remotely operated over a 10/100 Mbps Ethernet network using the Modbus TCP/UDP protocol.
The module supports DI-to-DO pair-connection over the Ethernet. Once configured, it continuously reads the status of remote DI channels and then write the corresponding values to local DO devices via the Modbus TCP protocol.
Features:
- Web Server for Configuration
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Topology
- Supports Dual-watchdog
- Built-in I/O: 32-ch DO (Sink/Source)
- I/O Pair Connection (Push and Pull)
- LED Indicators for I/O Status
| Module | DO | ||||
|---|---|---|---|---|---|
| DC | DC+PoE | Channels | Type | Sink/Source | Max. Load @ 25ﾟC |
| ET-2242 | PET-2242 | 16 | Open Collector | Sink | 650 mA/Channel |
| ET-2242U | - | 16 | Push-Pull | Sink/Source | 500 mA/Channel |
| ET-2242U-32 | PET-2242U-32 | 32 | 300 mA/Channel道 | ||
For more information, please visit the following website:
ET-2242U-32: https://www.icpdas.com/en/product/ET-2242U-32
PET-2242U-32: https://www.icpdas.com/en/product/PET-2242U-32
