ICP DAS release a new PAC/Soft PLC development software Win-GRAF !
Win-GRAF is a powerful PAC/Soft PLC SoftLogic development kit and a PLC-like SoftLogic package that supports IEC 61131-3 Standard Open PLC Languages running on Windows 7 or Windows 8. The Win-GRAF Runtime application can run on any ICP DAS PAC (Programmable Automation Controller) that supports the Win-GRAF, such as the WinCE series WinPAC, the WinCE series touch panel ViewPAC, or the advanced CPU XPAC-CE6 series. Using the Win-GRAF software with ICP DAS Win-GRAF PACs, the control/monitor systems can easily implement industrial level of data acquisition and logic control in various industry fields.



Win-GRAF PAC of ICP DAS

Win-GRAF Workbench Features

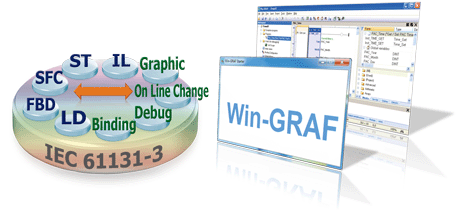

• Support IEC 61131-3 Standard Open PLC Languages:
  Ladder Diagram (LD) / Function Block Diagram (FBD) / Sequential Function Chart (SFC) / Structured Text (ST) / Instruction List (IL)
  Please refer: Win-GRAF vs ISaGRAF List

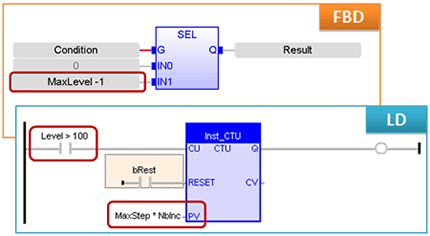

• Using ST Syntax in the FBD or LD Program



• On Line Debug/Control/Monitor
• Off Line Simulation on PC

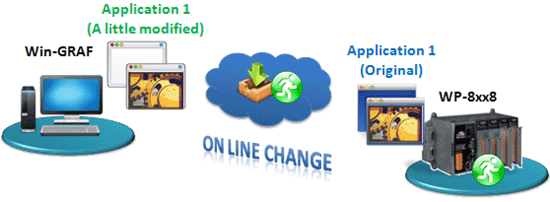

• On Line Change: Replace the current running project to a new modified one without stopping the project.

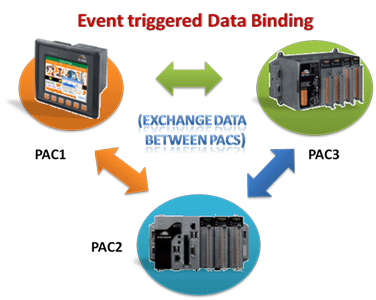

• Event Triggered Data Binding: Exchange data between PACs.



• Upload Source Code From PAC to PC
• Recipe: Apply multi-recipes pre-defined in PC/Win-GRAF to PAC.
• Spy List: Show several selected variables in one Spy List window.



Win-GRAF PAC Features

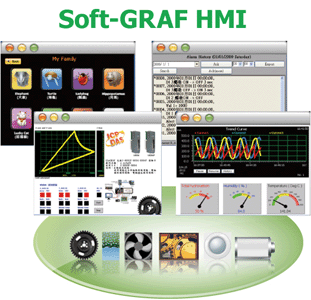

• Support Soft-GRAF HMI (Free !)



• Support Modbus Master/Slave Protocol (TCP Multiple Connections)
• Support File Access & Data Log
• Exchange Data between PACs
• Support a Variety of I/O Boards, DCON I/O and Temperature/Humidity Modules
• Support Retain Variables
• Protect the Win-GRAF Application by user-defined algorithm.
• Support Redundant Solution (XP-8xx8-CE6) to achieve more secure engineering applications.
• Schedule-Control

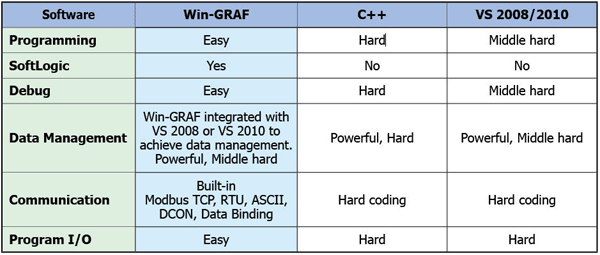

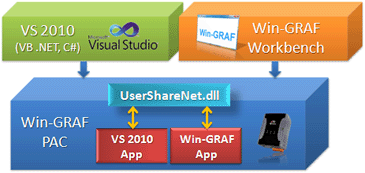

• Support VS 2008/VS 2010 Development:
