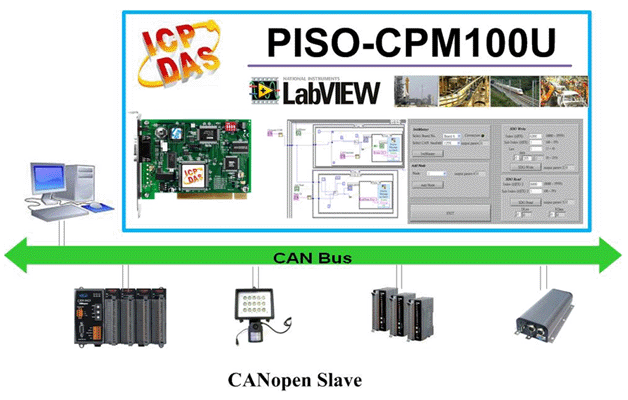

In order to implement the CANopen application with NI LabVIEW software, ICPDAS provides a set of LabVIEW components of the PISO-CPM100U. With a few simple steps, the users could easily access the remote CANopen slaves and rapidly develop the CANopen applications. By applying the CANopen components, the users would simplify the architecture of the CANopen projects and reduce the complexity of applications. With various analysis tools like the trend and statistic chart in LabVIEW, the users can build a variety of HMI and enhance the stability of the application systems. By using the CANopen components, the users can communicate with all various CANopen slave and need not to know the detail of CANopen protocol. It is the best tool to reduce the development time when facing various difficult industrial CANopen applications, for example industrial machine control, airplane engine control, factory automation, medical equipment industry and distributed data acquisition.





CANopen for LabVIEW software Features:

• Standard CANopen specification CiA 301 v4.02
• Support node id 1 ~ 127
• Support bauds :10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, and 1 Mbps
• Support both Node Guarding Protocol and Heartbeat Consumer Protocol
• Support NI LabVIEW Software V8.5 or newer
• Support Windows 2000 / XP/ 7

More information about PISO-CPM100U, please visit the following website:
https://www.icpdas.com/en/product/PISO-CM100U-D
https://www.icpdas.com/en/product/PISO-CM100U-T

LabVIEW driver of PISO-CPM100U can be downloaded from:
https://www.icpdas.com/en/download/show.php?num=1105&model=PISO-CM100U-D
