The new version Virtual CAN driver supports “Group-Sending” APIs for scheduling CAN messages transmission. By applying these APIs, the users could arrange those CAN commands which would be sent in order with specific time interval. Its great and powerful scheduling process helps to control or collect the data from those remote CAN devices. Excepting these new functions, we also provide the powerful software “VxCAN Utility” which includes data logging, diagnosing, event trigger and other useful functions. The VxCAN Utility is based on the Virtual CAN technique which creates virtual CAN ports to match the physical CAN interfaces of the installed ICPDAS CAN products. The VxCAN Utility is able to integrate all CAN master products which are CAN converters and CAN PCI boards of ICP DAS. By using the VxCAN Utility, the users could access different CAN master products to send and receive CAN messages.



VxCAN Utility

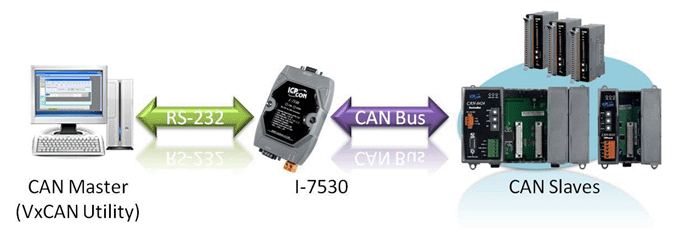

Works as a CAN Master: The VxCAN Utility provides basic sending and receiving functions. Through these functions, the ICPDAS CAN products, for example the I-7530, a CAN to RS-232 converter, can work as a CAN master to control the CAN slave device as the following figure. Users just need to use the VxCAN Utility to send the corresponding commands of the CAN slave devices, the responses from the slave devices will be shown in the reception list of the utility. If there are several commands needed to be sent sequentially, users can use the “Group-Sending” function to access the slave devices in specific regular time.

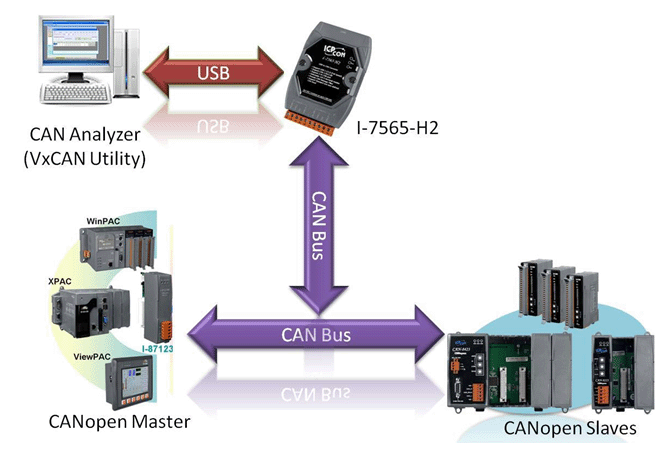

Works as a CAN Analyzer: The VxCAN Utility could be a compact analyzer. When users would like to diagnostic the CAN network, the VxCAN Utility provides several useful functions, such as event trigger, data log and bus loading trend. The event trigger can be used to trigger the message transmission, data log or stop of messages reception. Via using an ICP DAS CAN product, for example I-7565-H2, a CAN to USB converter, the utility would be helpful for users to monitor the communication of the network, access the CAN nodes, and diagnose the CAN Bus loading.

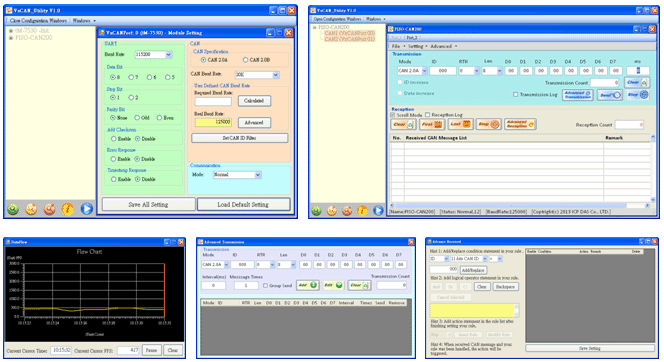

Simply and Friendly operation Interface:



Group Sending APIs of Virtual CAN driver

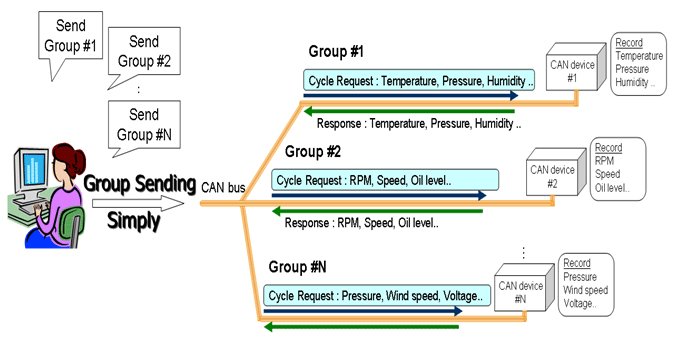

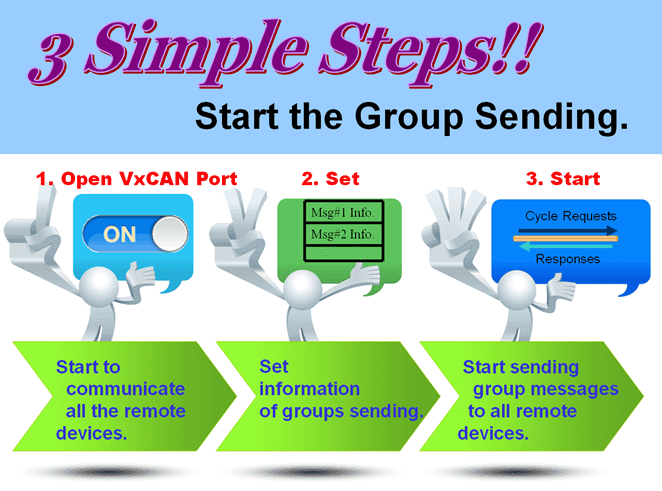

In most of CAN applications, the CAN master sometime iteratively polls entire remote devices with the sequential CAN commands. The new “Group-Sending” functions of the VxCAN driver could help transmitting those sequential CAN commands at specific time interval. Therefore, users would only deal with the replied CAN messages. To implement the group sending functionality, users only need to use the “Group-Sending” APIs to configure and start the transmission. It will simplify the CAN application projects and help to manage CAN devices more efficiently.







VxCAN Utility Software Features:

• Integrates all CAN converters in the utility.
• Searches all supported CAN products installed in the system automatically.
• Provides the basic functions to send and receive CAN messages.
• Allows sending a predefined group of CAN messages.
• Provides CAN ID filter to sieve out the unnecessary CAN messages.
• Supports the trigger event for diagnosing system.
• Presents the CAN Bus real-time loading by the trend.
• Shows the CAN Bus status of the CAN product.
• Supports CAN message logging functions.



Feature of “Group-Sending” APIs:

• By using the APIs, the users can send multiple groups of the CAN messages
• It supports monitoring APIs to handle and manage the CAN group status.
• For each virtual CAN port, it supports up to 100 different groups to transmit at the same time.
• For each CAN group, it support up to 100 scheduled CAN messages.
• It supports individual transport and reception functions during the group sending working.
• Provide various Demos with “Group-Sending” APIs.
• Supports a variety of ICP DAS CAN devices.

Supported OS: Windows XP, 7
Supported product list:

About more information of VxCAN Utility, please refer to the following web site:
https://www.icpdas.com/en/product/guide+Software+Utility_Driver+VxCAN__Utility
