U-7500 Series – OPC UA I/O Module New Feature Release
Product Update
2024-09-18
The UA I/O module introduces two new features:
1. Enhance OPC UA Server/Client Security
2. Quick Restoration of I/O Module Settings
[Introduction]
1. Enhance OPC UA Server/Client Security
With the rapid development of Internet of Things (IoT) technology, the risks associated with information security are also growing. To address these concerns, the UA-I/O module has integrated additional security policies, including Basic256Sha256, Aes128Sha256RsaOaep, and Aes256Sha256RsaPss. These policies provide customers with stronger communication security options.
Instructions:

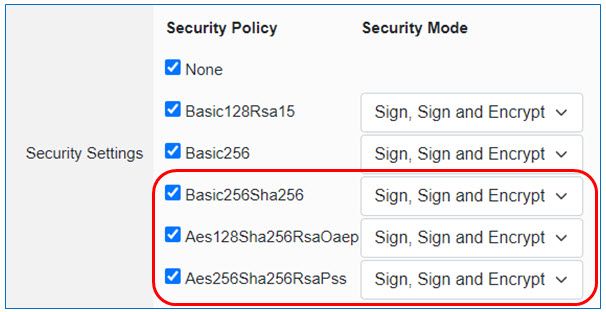

∎ Enhance Server Security

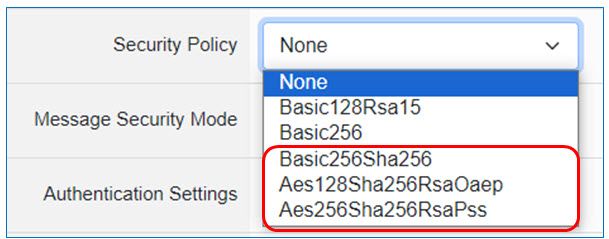

∎ Enhance Client Security
2. Quick Restoration of I/O Module Settings
UA I/O modules now support the download and upload of the APP Project File+System Settings via [Module Settings] → [Project File], allowing for quick replacement when a module fails and a spare module of the same type is available.
Instructions：
∎ Step 1

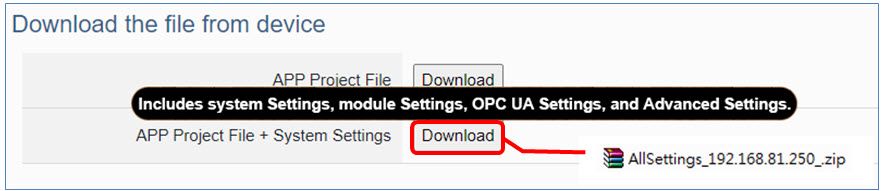

Download the "APP Project File + System Settings" via [Module Settings] → [Project File] and save the "AllSettings_xxx.xxx.xxx.xxx_.zip" file for backup.
 |
∎ Step 2

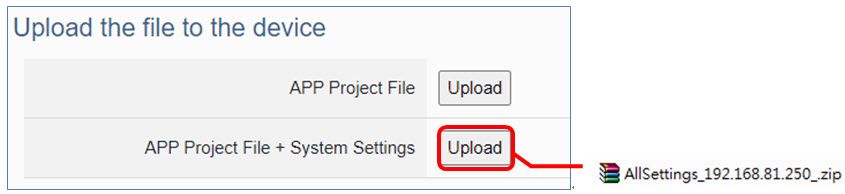

Upload the backup file via [Module Settings] → [Project File] on the web interface, and then proceed to replace the defective module.
 |
[Live Demo]

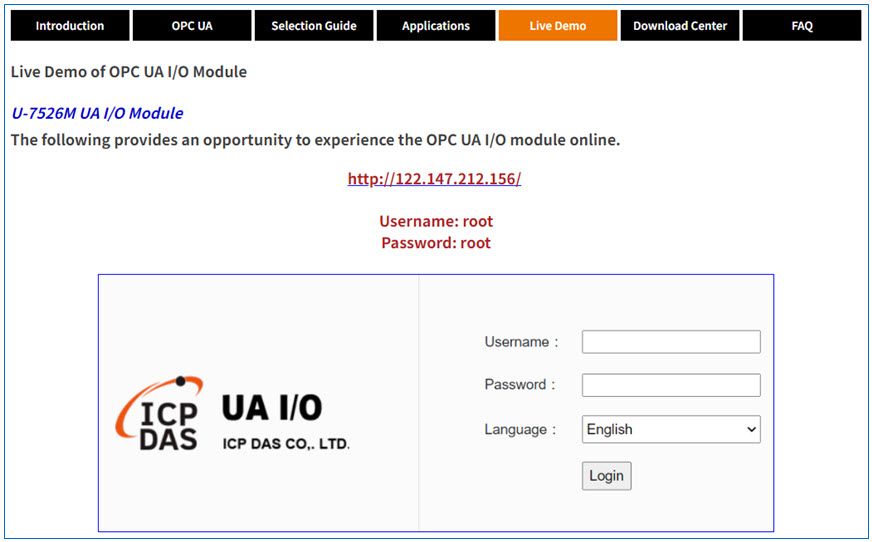

ICP DAS provides a live demo for the UA series. Please refer to the link and image below for the demo URL and password:
https://www.icpdas.com/en/product/guide+Remote__I_O__Module__and__Unit+Ethernet__I_O__Modules+OPC__UA__I_O__Module#2709
