IEC850-211-S – Modbus TCP Master to IEC-61850 Server Gateway

Search: Product Update

IEC850-211-S – Modbus TCP Master to IEC-61850 Server Gateway

Product Update 2024-06-04

Update content for IEC850-211-S module:
1. Support data objects Ind,AnIn,SPCSO,AnOut
2. Added support for Modbus function code 16
3. Object Name can be modified

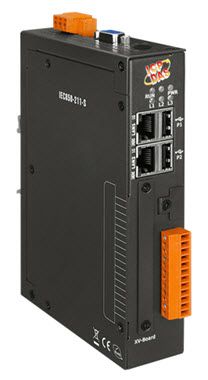

Introduction

IEC850-211-S is a network gateway allowing IEC-61850 MMS client to access Modbus TCP network as a Modbus TCP client. IEC850-211-S supports Logical Node GGIO and Data Object Ind, AnIn, SPCSO, AnOut. It also supports data set and unbuffered report function to exchange data with a client. The data mapping rule can be configured via ICP DAS Utility.

New function introduction

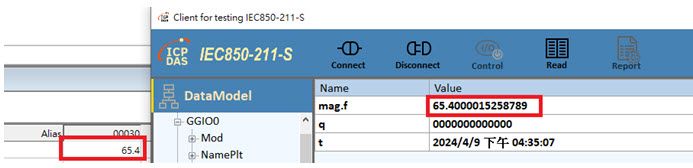

1. Support data objects Ind,AnIn,SPCSO,AnOut
AnIn and AnOut can support multiple data types, such as: Int32.float

2. Support for Modbus function code 16
Support for Modbus function code 16, which can write to multiple Modbus registers

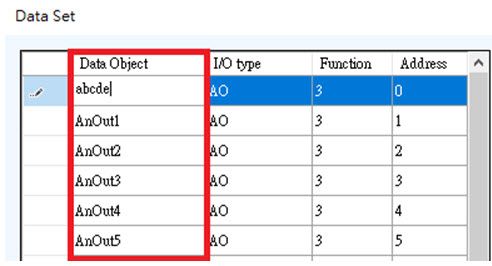

3. Object Name can be modified
Users can modify the object name by themselves (limited to 30 characters)

For more information, please visit the following website:
https://www.icpdas.com/en/product/IEC850-211-S
