DN-DO-16DR-A/DN-DO-16DR-B
Termination board for digital output with high EMS protection and removable relay


~ NEW ~ ~ NEW ~
Model: DN-DO-16DR-A Model: DN-DO-16DR-B

NOTE: The DN-DO-16DR-B cannot work standalone. It must connect to DN-DO-16DR-A when channel15~31 is used.
The DN-DO-16DR-A & DN-DO-16DR-B are termination boards with relay (Form C, SPDT) output. The DN-DO-16DR-A is used for digital output channel 0~15, and the DN-DO-16DR-B is used for digital output channel 16~31. These boards offer 2 output for each channel to extend control logic due to the Form C relay, it can be positive (N.O.) or negative (N.C.) logic output or both. In addition, each channel is built-in two varistors on N.O. and N.C. channel to protect against high-voltage transients and surges to the control loop.

Model DN-DO-16DR-A DN-DO-16DR-B
Digital Output
Type Form C Relay
Relay Contact
Contact configuration SPDT
Rated current/Max. peak current 6 A/10 A
Rated voltage/Max. switching voltage 250 VAC/400 VAC
Minimum switching Load 300 mW
Mechanical life 20 x 106
Operate/release time 8/5 ms
Relay Coil
Voltage input 24 VDC ± 10%
Current consumption 400 mA@24 VDC
Varistor Protection
Max. applied voltage (Continuous) AC: 300 Vrms
DC: 385 VDC
Rated voltage 470 Vrms
General
Dimension (W x L x H) 126.6 x 274.6 x 25.5 mm
Mounting 35 mm DIN Rail, Wall
Ambient Temperature -25 ~ 75 °C
Humidity 5 ~ 95 % RH, Non-condensing

PIN Assignments

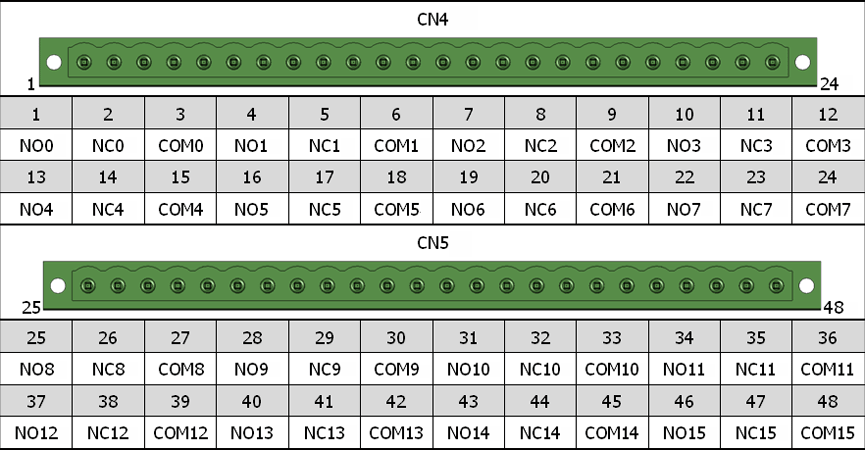

● DN-DO-16DR-A

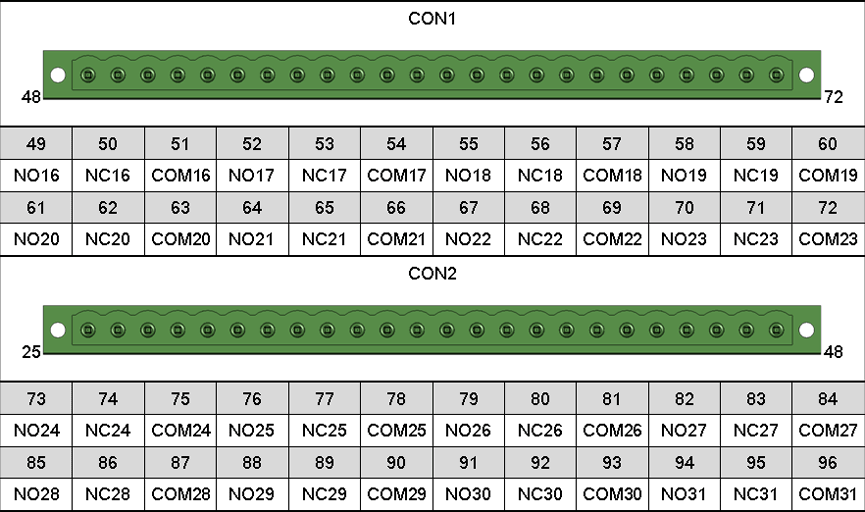

● DN-DO-16DR-B

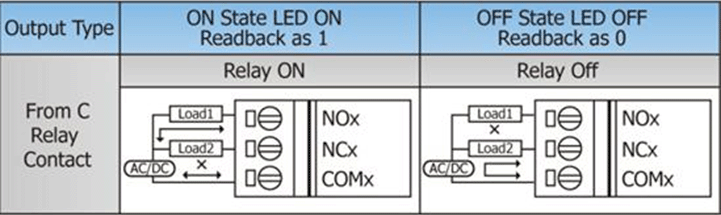

Wiring

DN-DO-16DR-A CR Termination board for digital output with high EMS protection and removable relay (Ch0 ~ 15) (RoHS)
DN-DO-16DR-B CR Termination board for digital output with high EMS protection and removable relay (Ch16 ~ 31) (RoHS)

CA-2520D 2m 25-pin Male-Male D-sub flat cable
CA-3710AM 1m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3720AM 2m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3730AM 3m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3750AM 5m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-37100AM 10m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3710D DB-37 Male-Male D-sub cable 1M, Cable for Daughter Board (180o)
CA-3720D DB-37 Male-Male D-sub cable 2M, Cable for Daughter Board (180o)
