DN-DIO-M
Universal termination board for digital I/O


~ NEW ~
Model: DN-DIO-M


The DN-DI-M is a termination board for digital input and output modules. The size of DN-DIO-M is relatively small than other termination boards. Due to the small size of termination board, the DN-DIO-M can be fulfilled some applications in small cabinet.

Digital Output
Channel 32
General
Dimension (W x L x H) 112mm x 117mm x 29mm
Mounting 35 mm DIN Rail, Wall
Operating temperature -25 ~ +75 °C
Humidity 5 ~ 95 % RH, Non-condensing

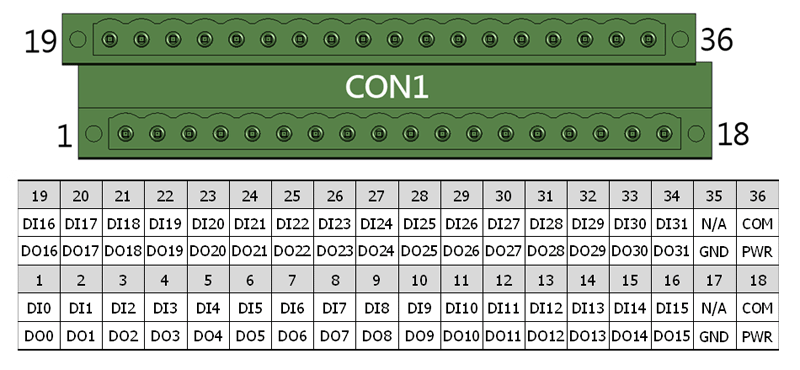

PIN Assignments
Wiring

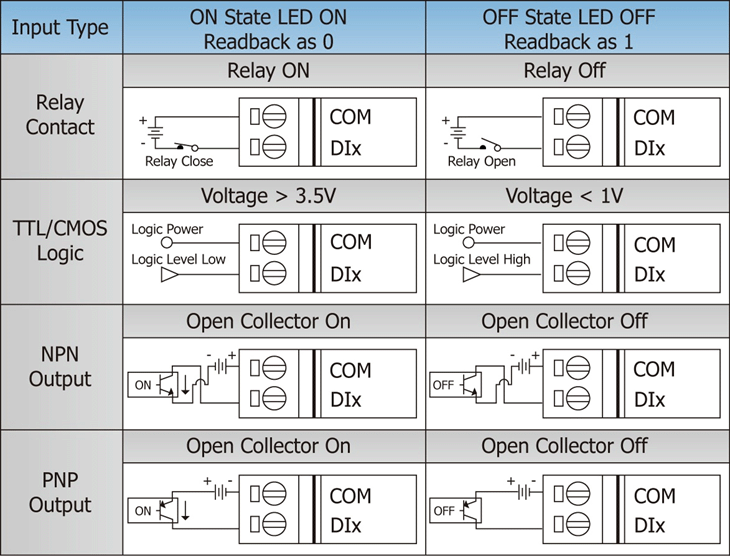

Digital Input

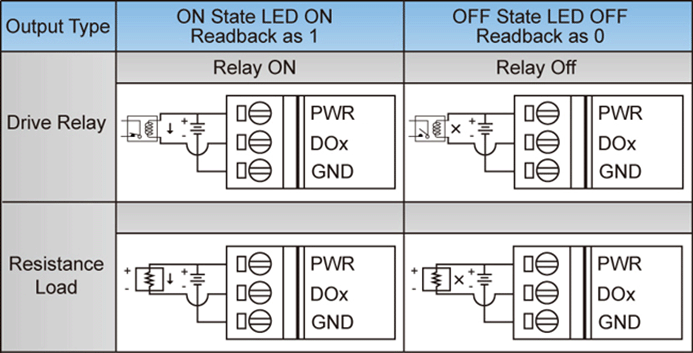

Digital Output

DN-DIO-M CR Universal termination board for digital I/O (RoHS)

CA-3710AM 1m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3720AM 2m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3730AM 3m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3750AM 5m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-37100AM 10m 37-pin Male-Female D-sub cable, 24AWG, UL-2464
CA-3710D DB-37 Male-Male D-sub cable 1M, Cable for Daughter Board (180o)
CA-3720D DB-37 Male-Male D-sub cable 2M, Cable for Daughter Board (180o)
