DN-SSR4/DN-SSR4DC
4-channel AC-type Form-A Solid State Relay module


Model: DN-SSR4 Model: DN-SSR4DC

  • 4 optically isolated digital output channels
  • 4 Form A solid-state relays
  • Switch up to 4A at 240 VAC (DN-SSR)
  • Switch up to 4A at 50 VDC (DN-SSR-DC)
  • 2,500 V optical isolation
  • LEDs indicate relay status
  • Screw terminal for easy field wiring
  • Build-in diodes to protect from wrong connection of external power supply.
  • Connects directly to ICP CON I-7000 modules, or ISO-730 isolated output board, ISO-C64 output board, ISO-P32C32…etc.
  • DIN-Rail mounting

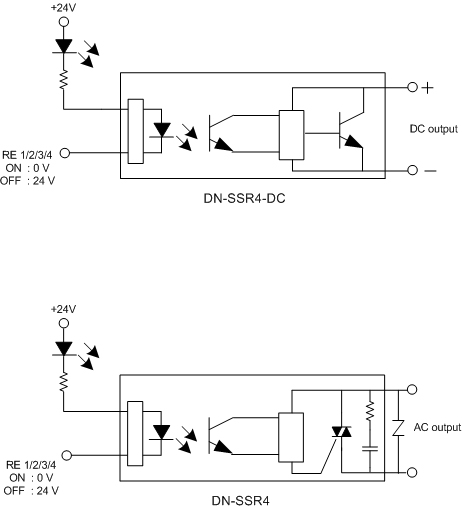

The DN-SSR4 relay module can control high voltage load up to 4 A @ 240 VAC, while the DN-SSR4-DC can control DC voltage load up to 4 A @ 50 VDC. Four indicator LEDs, one for each relay, light when their associated relay is activated. Each output of DN-SSR4 equipped with a varistor that shunts the surge voltage of the inductive load or electromagnetic brake to protect the relay contact point. All relay control and relay outputs are accessible through the wiring terminals.

  • On/off control
  • Energy management
  • Test Automation
  • Process Control

Model Name DN-SSR4 DN-SSR4-DC
Relay Output
Channels 4
Relay Type AC-Type
Form-A Solid State Relay		 DC-Type
Form-A Solid State Relay
Isolation Voltage 2,500 Vrms
Repetitive Peak OFF Voltage 600 V -
Load Voltage 50 ~ 250 VAC 3 ~ 50 VDC
Load Current 4 A (max.)
Surge Current 50 A 10 A (0.1sec)
OFF-State Leakage Current 50 mA Below 1.0 μA (Vo = 50 V)
Operate Time 1/2 cycle of voltage sine wave 1 ms (Zero-cross) (max.)
General
Input Voltage Logic OFF: 24 VDC
Logic ON: 0 V
LEDs Indicate Yes
Power Consumption 100 mA @ 24V max.
Dimensions 101mm x 77 mm x 66mm (W x L x H)
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5% ~ 90% RH, non-condensing

DN-SSR4 4-channel AC-type Form-A Solid State Relay module
DN-SSR4/N 4-channel AC-type Form-A Solid State Relay module without DIN-Rail Mount
DN-SSR4-DC 4-channel DC-type Form-A Solid State Relay module
DN-SSR4-DC/N 4-channel DC-type Form-A Solid State Relay module without DIN-Rail Mount

ACE-540A 24V/1.7A output power supply
