DB-24C
24-channel Open Collector Output Board



Model: DB-24C

  • 24 open-collector output (NPN)
  • One OPTO-22 Compatible Connector and one 37 pin D-sub connector and one 20-pin connector
  • Connects directly to OPTO-22 compatible board or any 722,724 series board
  • 24 channel max. load 600mA (per channel)
  • Max. laod voltage : 30 VDC
  • LED’s indicated output status
  • Screw terminals for easy field wiring

The DB-24C has 24 channels of optically isolated digital outputs, arranged into four isolated banks.

  • Open-collector (NPN)
  • Channel 0~23 : 600mA (max. load current)
  • Response Speed : 1 kHz (Typical)
  • Power Consumption : +5V @0.4A max

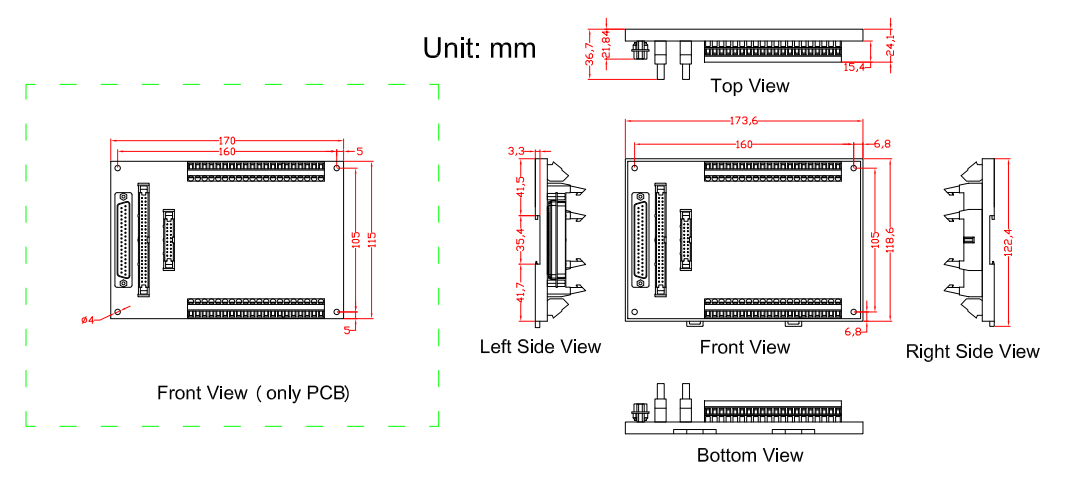

  • Dimension : 170 mm x 114 mm
  • Operating Temperature : 0 ~ 60 °C
  • Storage Temperature : -20 ~ 70 °C
  • Humidity : 5% to 90 % noncondensing


  • On/off control
  • Energy management
  • Test Automation
  • Process Control

DB-24C 24-channel OPTO-22 compatible Open-collector output Board
Include : CA-5015 (50-pin Flat Cable 1.5m)
DB-24C/D 24-channel Open-collector output Board
Include : CA-3710 (37-pin D-sub Cable 1m)
DB-24C/DIN DB-24C with DIN-Rail Mounting
DB-24C/D/DIN DB-24C with DIN-Rail Mounting

CA-2010 20-pin flat cable 1.0m
CA-2020 20-pin Flat Cable 2m
CA-3720 37-pin D-sub connector cable 2.0m
Non-"D" with CA-5015
"D" with CA-3710
