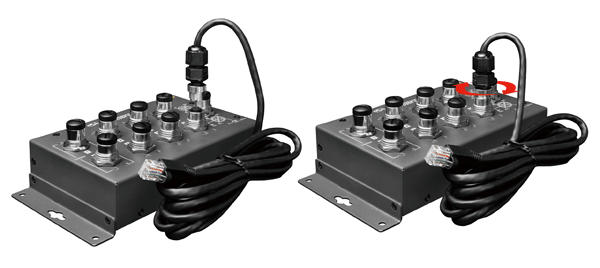

The NSM-208PSE-M12/NSM-208-M12 is designed for industrial applications in harsh environments. The M12 connectors
ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration
and shock.
The NSM-208PSE-M12 PoE switch provide 8 fast Ethernet M12 ports with 8 IEEE 802.3af compliant PoE ports. The switch is
classified as power source equipment (PSE) and provide up to 15.4 W of power per port.
The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and
provide an economical solution for your industrial Ethernet network.
The NSM-208-M12 provides a wide 12 to 53 VDC power range to fit all the common power standards found in industrial
automation, without external power converters. The wide power input lowers installation and maintenance costs. |
