TPD-433-M2

~ NEW ~

Excellent C/P ratio (cost/performance)
High-resolution color touch screen
PoE (Power over Ethernet)
Multiple serial communication interfaces
RTC (Real Time Clock)
GUI design
Free HMIWorks development tool
Supports C language and Lader Designer
Modbus TCP, Modbus RTU and DCON protocol
ESD Protection: 4 kV
Operating temperature: -20 ~ 50°C
Supports user-defined third party protocol (C language)

Model: TPD-433-M2

TPD 4.3 inch Mx series is a series of tiny touch HMI and designed for building and home automation. TPD 4.3 inch Mx series is equipped with high resolution TFT color touch screen and can be used to replace regular electrical wall-mount outlets. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. It supports Modbus TCP/RTU protocols so that it enables remote control of I/O modules and integration with SCADA software. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

CPU Module
CPU	32-bit RISC CPU
Memory Expansion	16 MB SDRAM/16 MB Flash
Real Time Clock (RTC)	Yes
Buzzer	Yes
Rotary Switch (0~9)	Yes
Communication Interface
COM1	RS-485 (including Self-Tuner)
COM2	RS-232 (3-pin)
Ethernet	RJ-45 x 1, 10/100 Base-TX
USB 1.1 Client	Firmware updates only
MMI (Main Machine Interface)
LCD	4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life	20,000 hours
Brightness	400 cd/m2
Touch Panel	Yes
LED Indicator	Yes
Reset Button	Yes
Electrical
Powered from Terminal Block	+12 ~ 48 VDC
Powered from PoE	IEEE 802.3af, Class1 (48 V)
Power Consumption	2.5 W
Mechanical
Dimensions (W x L x H)	140 mm x 87 mm x 42 mm

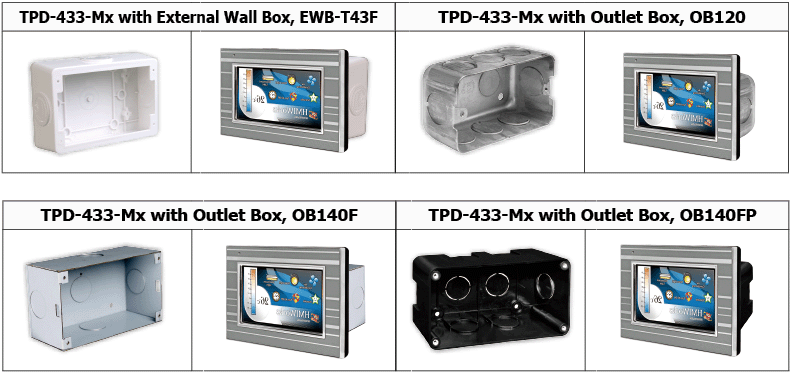

Installation	Wall Mount
Ingress Protection	Front Panel: IP40
Environmental
Operating Temperature	-20 ~ +50°C
Storage Temperature	-30 ~ +80 °C
Ambient Relative Humidity	10 ~ 90% RH, non-condensing

TPD-433-M2 CR

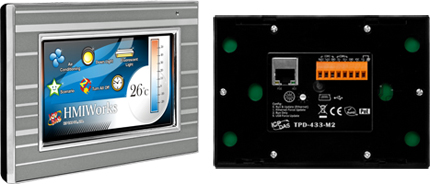

4.3" Touch HMI device with RS-485, RS-232 (3 pin), USB, RTC, Ethernet (Panel: grey, RoHS)

CA-USB10	USB to 5P Mini-USB, 28AWG, 1.5 m
1C016	2.4 mm Screw driver
MDR-60-24 CR	24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
DIN-KA52F CR	24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
