TPD-280-H/TPD-280U-H/TPD-283-H/TPD-283U-H

               ~ NEW ~
Model: TPD-280-H Model: TPD-280U-H

Model: TPD-283-H Model: TPD-283U-H

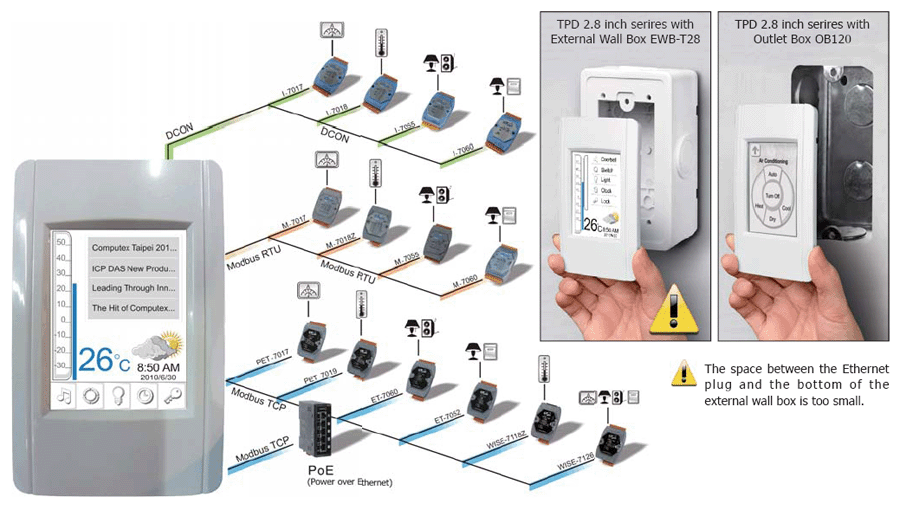

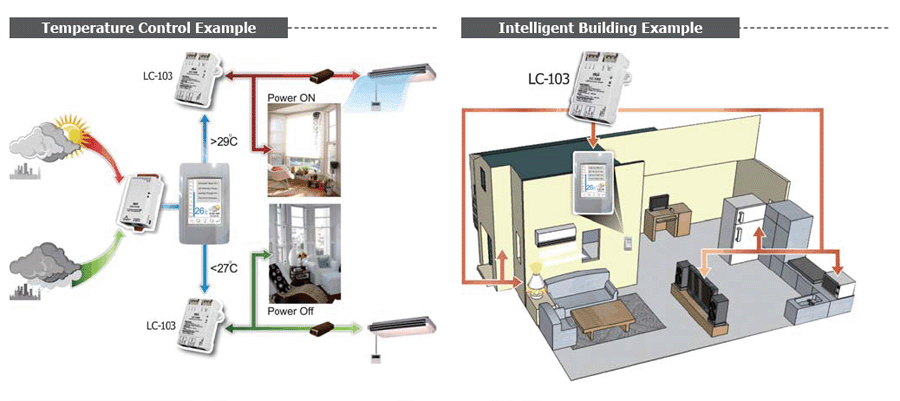

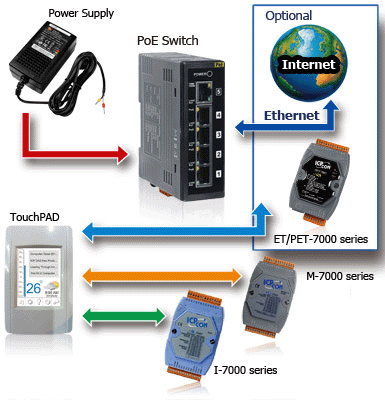

TPD 2.8 inch H series of tiny touch HMI and designed for building and home automation. TPD 2.8 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPDseries devices when using Ladder Designer. Moreover, we provide redundant solutions in our PoE version, TPD-283-H/TPD-283U-H of TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • RS-485 (including Self-Tuner)
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Suppots C programming language and Ladder Designer
  • Supports the custom communication protocol (C language)
  • Modbus TCP/RTU protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ 70°C


Models TPD-280-H TPD-280U-H TPD-283-H TPD-283U-H
CPU Module
CPU 32-bit RISC CPU
Memory Expansion - 16 MB SDRAM/16 MB Flash   16 MB SDRAM/16 MB Flash
Real Time Clock (RTC) - Yes - Yes
Buzzer Yes
Rotary Switch (0~9) Yes
Communication Interface
Ethernet - RJ-45 x 1, 10/100 Base-TX
Serial Port RS-485 (including Self-Tuner) - RS-485 (including Self-Tuner)
USB Client 1.1 - Firmware updates only - Firmware updates only
MMI (Main Machine Interface)
LCD 2.8 TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 160 cd/m2
Touch Panel Yes
Reset Button Yes
Electrical
Powered from Terminal Block +12 ~ 48 VDC - +12 ~ 48 VDC
Powered from PoE - IEEE 802.3af, Class1 (48 V)
Power Consumption 1.5 W
Mechanical
Dimensions (W x L x H) 119 mm x 76 mm x 33 mm 119 mm x 76 mm x 32 mm 119 mm x 76 mm x 33 mm
Installation Wall Mount
Ingress Protection Front Panel: IP40
Environmental
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
Ambient Relative Humidity 10 ~ 90% RH, non-condensing

TPD-280-H CR 2.8” Touch HMI device with RS-485 (RoHS)
TPD-280U-H CR 2.8” Touch HMI device with RS-485, USB download, RTC (RoHS)
TPD-283-H CR 2.8” Touch HMI device with Ethernet, PoE (RoHS)
TPD-283U-H CR 2.8” Touch HMI device with RS-485, RTC, Ethernet, PoE (RoHS)

1C016 2.4 mm Screw driver
NS-208PSE CR Unmanaged Industrial PoE (Power over Ethernet) Ethernet Switch (RoHS)
MDR-60-24 CR 24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
DIN-KA52F CR 24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
EWB-T28 External Wall Box for TPD 2.8 inch series

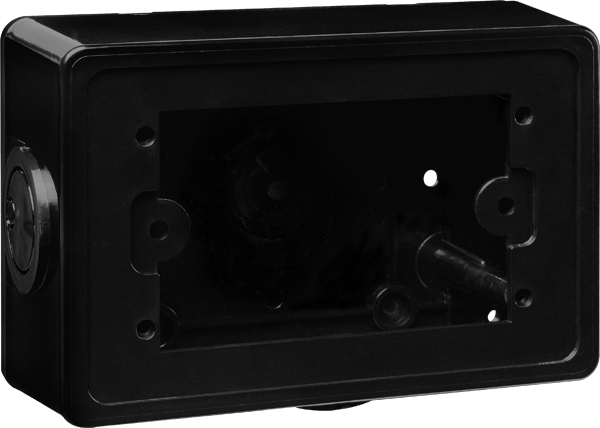

EWB-T28-BK External Wall Box for TPD 2.8 inch series (Black)
OB120 Outlet Box for TPD 2.8 inch series and TPD-430/TPD-433 Devices
