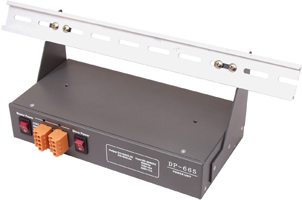

DP-665 is a 65 watts,universal input switching mode power supply.
It is with 24V/5V output options. DP-665 is intended for power device like motor or solenoid application.Build in +5V 3T-regulator for DP-665 is for if there is a logical control circuit.
Input voltage : 85 VAC ~ 270 VAC
Input frequency : 47 Hz ~ 63 Hz
Inrush current (Cold start):
less than 30A at 115 VAC
less than 60A at 230 VAC
DC Outputs:
+24 V/2.5 A
+5 V/0.5 A
Efficiency : higher than 70% at rated load and 115 VAC
