New Product Release: XP-8131-WES7, XP-8331-WES7, XP-8731-WES7
Windows Embedded Standard 7 based XPAC
Jan. 17, 2017 - IntroductionXP-8X31-WES7 Series is a new generation Windows Embedded Standard based PACs developed by ICP DAS. It is equipped with a x86 CPU (1 GHz, dual-core), various connectivity (VGA, USB, Ethernet, RS-232/485) and 1/3/7 I/O slot(s) for high performance parallel I/O modules (high profile I-8K Series) and serial I/O modules (high profile I-87K series). The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded via a Compact Flash slot. XPAC is capable of running PC-based control software such as Visual Basic .NET, Visual C#,…. etc. It has all of the best features of both traditional PLCs and Windows capable PCs.
Local I/O and Communication Expansion ModulesThere are 1, 3, 7 slot options provided to expand the local I/O. And the I/O modules can be parallel bus type (I-8K series) or serial bus type (I-87K series).
The I/O slots support parallel bus type (I-8K series) and serial bus type (I-87K series) I/O modules. These modules provides wide-range options for different I/O combination to implement all kinds of I/O functions such as: AI, AO, DI, AO, counter input, frequency input, PWM output, motion control, memory, communication, etc.
I-8K & I-87K:
http://www.icpdas.com/root/product/solutions/remote_io/rs-485/i-8k_i-87k/i-8k_i-87k_selection.html#a

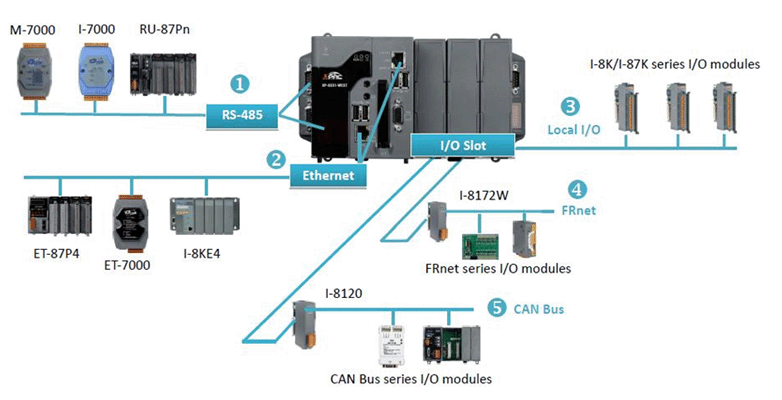

Multi-Communication InterfaceThere are several communication interfaces can be used to expand I/O and connect to external devices:
1. Ethernet
2. RS-232/485 -
Features:
- Windows Embedded Standard 7
- x86 CPU, 1 GHz, dual-core
- Memory Size:
○ DDR3 SDRAM (2 GB), Built-in Flash Disk (32 GB)
○ EEPROM (16 KB), CF Card (8 GB)
○ Dual Battery Backup SRAM (512 KB) - VGA Port x 1, USB 2.0 port x 2, Series port (RS-232/RS-485) x 4
- 64-bit Hardware Serial Number
- Dual Ethernet Ports (10/100M/1G)
- Audio with Microphone-In and Earphone-Out
- Redundant Power Input
- Support eLogger HMI
- Ultra-Rugged Construction and Reliable Design
- Operating Temperature: -25 to +75 °C
- For more information about XP-8X31-WES7, please visit following links:
● XP-8X31-WES7 Datasheet: http://ftp.icpdas.com/pub/cd/ippc-wes7/document/data_sheet/
● XP-8X31-WES7 Web Page: http://www.icpdas.com/root/product/solutions/pac/xpac-atom/xp-8000-wes7.html
● ICP DAS Webpage: http://www.icpdas.com/index.php - Instructions for upgrading from XP-8x41/XP-8x41-Atom to XP-8x31-WES7
Specification Comparison SpecificationXP-8x41XP-8x41-Atom (Phased-out)XP-8x31-WES7 (New)OS XPEXPEWES7CPU AMD LX800 (500 MHz)Atom Z520 (1.33 GHz)x86 dual-core (1.0 GHz)RAM size 1 GB1 GB2 GBROM size 4 GB16 GB32 GBEthernet 10/100 Base-TX * 210/100/1000 Base-TX * 210/100/1000 Base-TX * 2USB USB1.1 * 2USB2.0 * 4USB2.0 * 4I/O Slots 0/3/71/3/71/3/7Compared with the XP-8x41-Atom, the hardware size and the positions and numbers of the peripheral communication interface of the XP-8x31-WES7 are completely compatible with the XP-8x41-Atom, and the hardware can be directly upgraded. Hardware specifications include faster CPU, Gigabit Ethernet and larger RAM memory; the overall system performance is greatly improved than the previous generation.
