- New Product Release: Win-GRAF SoftLogic Development Software
ICP DAS release a new PAC/Soft PLC development software Win-GRAF !
Win-GRAF is a powerful PAC/Soft PLC SoftLogic development kit and a PLC-like SoftLogic package that supports IEC 61131-3 Standard Open PLC Languages running on Windows 7 or Windows 8. The Win-GRAF Runtime application can run on any ICP DAS PAC (Programmable Automation Controller) that supports the Win-GRAF, such as the WinCE series WinPAC, the WinCE series touch panel ViewPAC, or the advanced CPU XPAC-CE6 series. Using the Win-GRAF software with ICP DAS Win-GRAF PACs, the control/monitor systems can easily implement industrial level of data acquisition and logic control in various industry fields.-
● Win-GRAF PAC of ICP DAS
Win-GRAF PAC Series Win-GRAF PAC Model ViewPAC Series VP-25W8, VP-4138 (New!) WinPAC-8000 Series
WinPAC-5000 SeriesWP-8148, WP-8448, WP-8848 (New!)

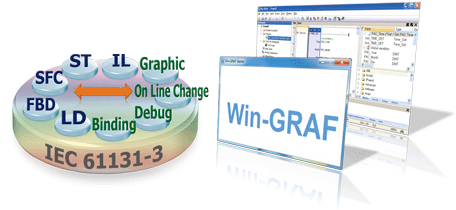

WP-5238, WP-5248 (Available soon!)XPAC-CE6 Series XP-8x48-CE6 (Available soon!) - ● Win-GRAF Workbench Features■ Support IEC 61131-3 Standard Open PLC Languages:
Ladder Diagram (LD) / Function Block Diagram (FBD) / Sequential Function Chart (SFC) / Structured Text (ST) / Instruction List (IL)
Please refer: Win-GRAF vs ISaGRAF List

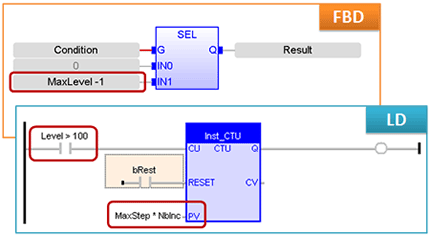

■ Using ST Syntax in the FBD or LD Program -
■ On Line Debug/Control/Monitor
■ Off Line Simulation on PC

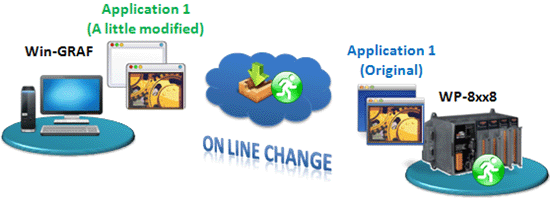

■ On Line Change: Replace the current running project to a new modified one without stopping the project. -

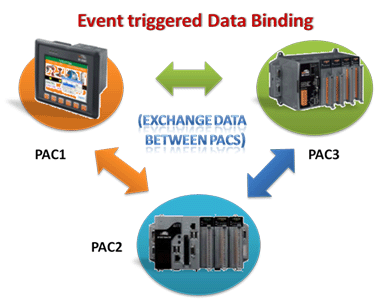

■ Event Triggered Data Binding: Exchange data between PACs.
-
■ Upload Source Code From PAC to PC
■ Recipe: Apply multi-recipes pre-defined in PC/Win-GRAF to PAC.

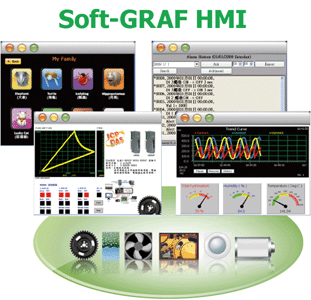

■ Spy List: Show several selected variables in one Spy List window. - ● Win-GRAF PAC Features■ Support Soft-GRAF HMI (Free !)
-
■ Support Modbus Master/Slave Protocol (TCP Multiple Connections)
■ Support File Access & Data Log
■ Exchange Data between PACs
■ Support a Variety of I/O Boards, DCON I/O and Temperature/Humidity Modules
■ Support Retain Variables
■ Protect the Win-GRAF Application by user-defined algorithm.
■ Support Redundant Solution (XP-8xx8-CE6) to achieve more secure engineering applications.
■ Schedule-Control

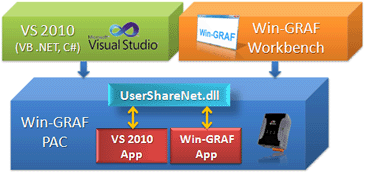

■ Support VS 2008/VS 2010 Development: - ● Win-GRAF PAC FeaturesWin-GRAF Web Site: http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/win-graf/win-graf.html
I-8K & I-87K High Profile I/O Modules: http://www.icpdas.com/products/PAC/i-8000/8000_IO_modules.htm
