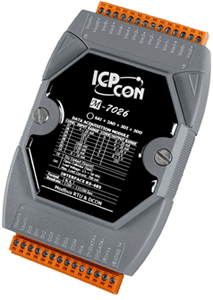

- New product: M-7026
6-channel Analog Input, 2-channel Analog Output, 3-channel Digital Input and 3-channel Digital Output Module - Introduction:
- The M-7026 is a multifunction module that includes 6 analog input channels, 2 analog output channels, 3 digital input channels, and 3 digital output channels. It provides a programmable input range on all analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ +20 mA and +4 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable.
- Features:
- Multifunction (6 AI, 2 AO, 3 DI and 3 DO)
- Supports Fast Mode and Normal Mode
- Individual Channel Configuration
- Open Wire Detection for Current Output
- Overload and Short Circuit Protection for Digital Output
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- 240 Vrms Overvoltage Protection for Voltage Input
- Jumper Selectable Voltage or Current Input/Output
- Dual Watchdog
- 4 kV ESD Protection
- Wide Operating Temperature Range: -25 ~ +75°C
- Applications:
- Industrial Automation
- Building Automation
- Food and Beverage Systems
- Semiconductor Fabrication
- Control Systems
- Industrial Machinery
