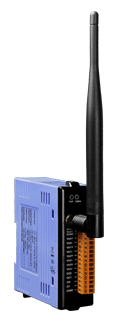

New Product: ZT-2026
ZigBee Wireless 4-channel Voltage Input, 2-channel Voltage Output, 2-channel Digital Input and 2-channel Digital Output Module - Introduction:
- The ZT-2026 is a wireless ZigBee module that offers 4 differential analog input channels, 2 analog output channels, 2 digital input channels and 2 digital output channels and provides a programmable analog input and output range. Each analog input channel can be configured to an individual range and each has 240 Vrms over-voltage protection. There are also options for a Digital Output power-on value and a Digital Output safe value. Users can easily configure the module address, protocol, checksum, ZB-PID, ZB-channel and type code settings using a combination of rotary and DIP switches.
- Features:
-
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G /ZigBee Specifications
- Wireless Transmission Range up to 700 m
- GUI Configuration Software (Windows Version)
- 4 AI, 2 AO, 2 DI and 2 DO Channels
- Individual Channel Configuration
- Overvoltage Protection is up to 240 Vrms
- Surge and ESD Protection
- DIN-Rail Mounting

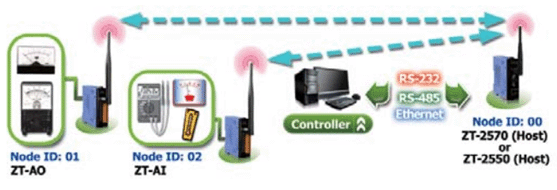

- Applications:
- For more information, please visit the following website:
http://www.icpdas.com/root/product/solutions/industrial_wireless_communication/wireless_solutions/zt-2026.html
