New Product: VPD-132/VPD-132N/VPD-133/VPD-133N
(local, remote I/O channel expandable)
have been released!


VPD industrial touch HMI device series features, 3.5" high resolution color touch screen LCD. With touchscreen capability, it is easy to deploy into all kinds of automation systems, and make them more intuitive and efficient. Either setup new system installations or complete system retrofits, VPD series stands out for its wide variety of communication methods.

Its built-in communication ports include RS-232/RS-485, and Ethernet, enable integration into the system allowing users to control, monitor I/O at the remote sides. Besides, the built-in non-volatile storage makes VPD series more reliable for rugged environments.

VPD-132(N)/VPD-133(N) support one I/O expansion bus. Each bus can be plugged in one XV-Board. The XV-Board allows users to implement various I/O functions such as DI, DO, A/D, D/A, & other I/O functions.

Hardware installation
The DIN-rail mounting of VPD-132/VPD-132N/VPD-133/VPD-133N The panel mounting of VPD-132/VPD-132N/VPD-133/VPD-133N

XV-BOARDS INSTALLATION

DI, DO EXPANSION
Item Name
DI
DO
Isolation
XV107
8
8
3750 VDC
XV107A
XV110
16
-
XV111
-
16
XV111A

RELAY OUTPUT EXPANSION
Item Name
Relay Output
DO
Isolation
XV116
6
5
3750 VDC


SOFTWARE DEVELOPMENT :

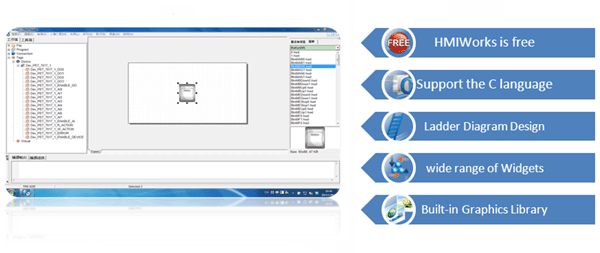

HMIWorks is the development tool for, both TPD and VPD series. It supports two programming types, Standard C and Ladder. Compared with traditional GUI development tools, HMIWorks is easy to learn, flexible to design GUIs, and takes less time to raise productivity.

Specifications
Models
VPD-132
VPD-132N
VPD-133
VPD-133N

Ethernet !

Ethernet !
CPU Module
CPU
32-bit RISC CPU
Memory Expansion
16 MB SDRAM / 8 MB Flash
Real Time Clock (RTC)
Yes
Buzzer
Yes
Rotary Switch (0~9)
Yes
Communication Interface
COM1
RS-485 (including Self-Tuner)
COM2
RS-232 (3-pin) or RS-485 (including Self-Tuner)
Ethernet
-
RJ-45 x 1, 10/100 Base-TX
USB 1.1 Client
Firmware updates only
MMI (Main Machine Interface)
LCD
3.5” TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life
20,000 hours
Brightness
270 cd/m2
Touch Panel
Yes
LED Indicator
Yes
-
Yes
-
Reset Button
Yes
Rubber Keypad
5 keys (Programmable)
-
5 keys (Programmable)
-
Electrical
Power Input Range
+12 ~ 48 VDC
+12 ~ 48 VDC or PoE (Power over Ethernet)
Power Consumption
2 W (83 mA @ 24 VDC)
2 W (83 mA @ 24 VDC) or IEEE 802.3af, Class 1
I/O Expansion
I/O Expansion Bus
Yes, to mount one optional XV-board
Mechanical
Dimensions (WxLxH)
103 mm (W) x103 mm (L) x 53mm (H)
Ingress Protection
Front Panel: IP65
Installation
DIN-Rail Mount and Panel Mount
Environmental
Operating Temperature
-20 ~ +70 °C
Storage Temperature
-30 ~ +80 °C
Ambient Relative Humidity
10 ~ 90% RH, non-condensing

Additional Links
TouchPAD sites: http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/touchpad_introduction.html
I/O Expansion Boards(XV-Boards): http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/xv-board_selection.html
